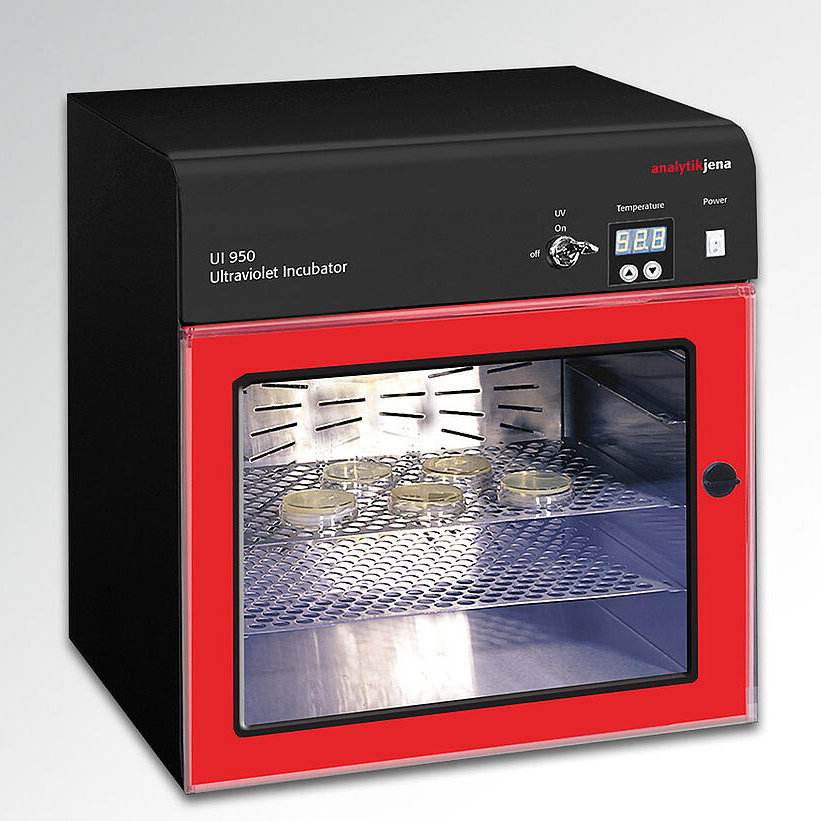

The UVP Incubator provides precise temperature control and uniformity for the incubation of biological assays, fungal, bacterial cultures, eggs and other samples up to 68 °C. The instrument is equipped with built-in overhead shortwave 254 nm UV tubes above the incubation chamber. Furthermore the interior of the instrument is made of stainless steel and easy to clean using non-abrasive mild detergents. Users are protected from UV radiation by the incubator door; the door blocks UV light, preventing UV radiation from passing through. The UV lamp will shut off if the door is opened. The instrument is delivered with two shelves made of stainless steel that can be adjusted at three different positions. This flexibility can be used for simultaneous incubation of various samples at different heights.
UVP Incubator
- Precise temperature control and excellent temperature uniformity
- Minimal benchtop space
- Microprocessor controlled for excellent temperature uniformity
- Reliable source of shortwave (254 nm) UV light
- Three position adjustable shelves
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.Technical Data | |
---|---|
Controller | PI |
Setpoint | Digital |
Display | Digital LED |
Temperature Range | RT +3 °C to 68 °C |
Temperature Sensor | LM345 Integrated Temperature Sensor |
Temperature Accuracy | +1 °C |
Temperature Uniformity | +0.5 °C to 37 °C |
Interior volume | 26.9 liters |
Average Relative Humidity (Interior) | ~ 80% |
Interior | Stainless steel |
Exterior | Aluminum powder coated |
Door | Acrylic |
Exterior W x H x D | 44.5 x 43.2 x 35.6 cm |
Interior W x H x D | 35.6 x 27.2 x 27.7 cm |
Dimensions shelves (W x D) | 33.8 x 21.6 cm |
Construction shelves | Formed stainless steel |
Surface area shelves | 729.35 cm2 |
Heating Element | 1.250 Watts 3.923,9628779 BTU/h (115 V, 10 A) |
Weight | 21.3 kg |
Max. Power Consumption | 115 V 60 Hz, 230V 60 Hz or 110 V 50/60 Hz and 1150 W |
Working conditions | 5 °C to 40 °C, max. 2.000 m NN |
