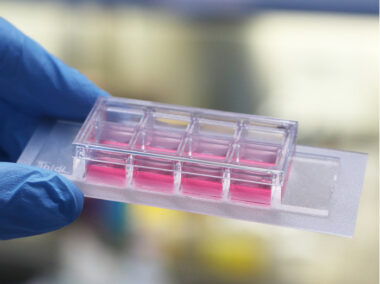

sticky-Slide 8 Well High
- Versatile: permits the mounting of a variety of bottom materials
- Provides an open well format for cell culture applications on any custom surface
- Enables the preparation of 8 samples in parallel
- Extra high individual walls to keep cross contamination between wells as low as possible
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart

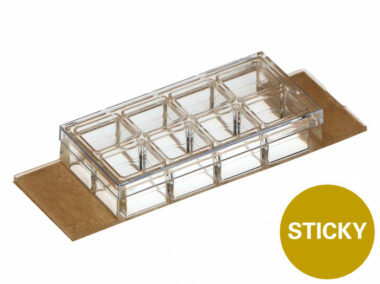

If you are looking for a quote, you can request this here.An 8 well bottomless µ-Slide with high walls and a self-adhesive underside to mount a variety of bottom materials
- Versatile: permits the mounting of a variety of bottom materials
- Provides an open well format for cell culture applications on any custom surface
- Enables the preparation of 8 samples in parallel
- Extra high individual walls to keep cross contamination between wells as low as possible
Applications
- Housing for various cell culture applications
- Usable with a range of bottom materials, such as plastic sheets, silicon chips, circuit boards, glass coverslips, and glass slides
- Biocompatible material
Technical Features
- Bottomless slide
- Self-adhesive underside
- Biocompatible, cell culture-tested adhesive
- Adheres to all flat surfaces, even wet surfaces
- Sterile packaging
- Suitable glass or polymer coverslips available
- Coverslips removable with acetone
- Individual well walls for minimizing well-to-well crosstalk and contaminations
- Specifications identical to those of the µ-Slide 8 Well high, except that it comes without a bottom
Specifications Table
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 8 |
| Dimensions of wells (w x l x h) | 9.4 x 10.7 x 9.3 mm³ |
| Volume per well | 300 µl |
| Total height with/without lid | 10.8/9.5 mm |
| Growth area per well | 1.0 cm2 |
| Coating area per well | 2.2 cm² |
| Bottom | none |
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 8 |
| Dimensions of wells (w x l x h) | 9.4 x 10.7 x 9.3 mm³ |
| Volume per well | 300 µl |
| Total height with/without lid | 10.8/9.5 mm |
| Growth area per well | 1.0 cm2 |
| Coating area per well | 2.2 cm² |
| Bottom | none |
Instructions
