Recirculating Chiller -20 to 100 °C
- Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up
- Clear digital display for instant reassurance – easy to read from a distance
- Visual and audible alarm – alert you when your attention is required
- Operating setpoint plus 3 adjustable preset temperatures for convenience
- User calibration facility for optimum accuracy at the required operating temperature
- Powerful integral pump – maximum flow rate 17L/min
- Cooling/heating range: -20 to 100°C
- Stability ± 0.1°C
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart

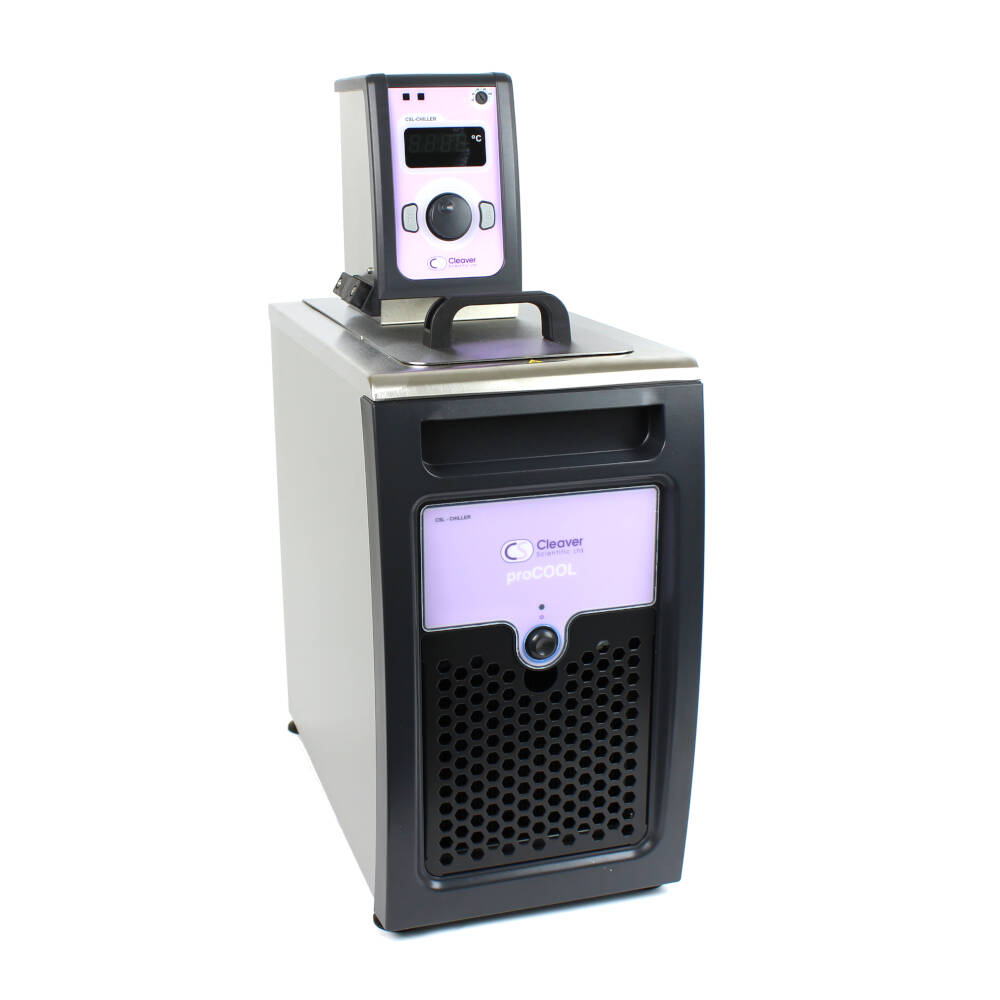

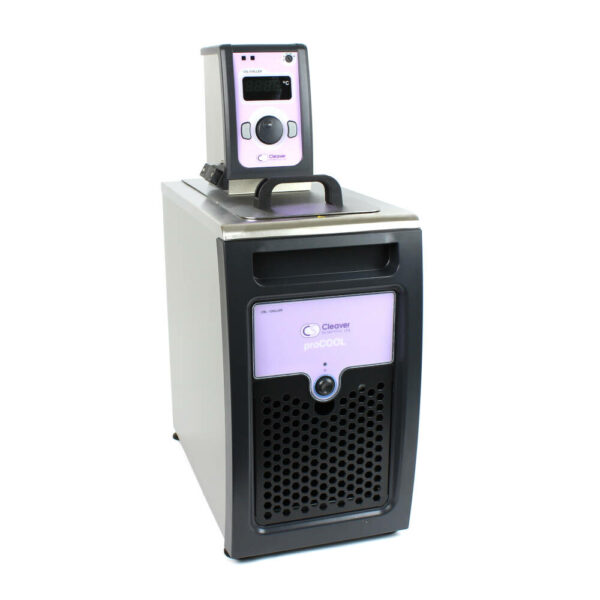

If you are looking for a quote, you can request this here.The CSL-CHILLER is available ready assembled with the thermostat mounted on the refrigerator and supplied with insulated tubing and clips to form a system ready to use. Supported by an industry leading 3 year warranty emphasising our confidence in the reliability of our product.
The system comprises the following:
- 5 litre tank with drain tap
- relay control for refrigeration on/off
- cooling power 140W @ 0°C
- temperature range -20 to 100°C

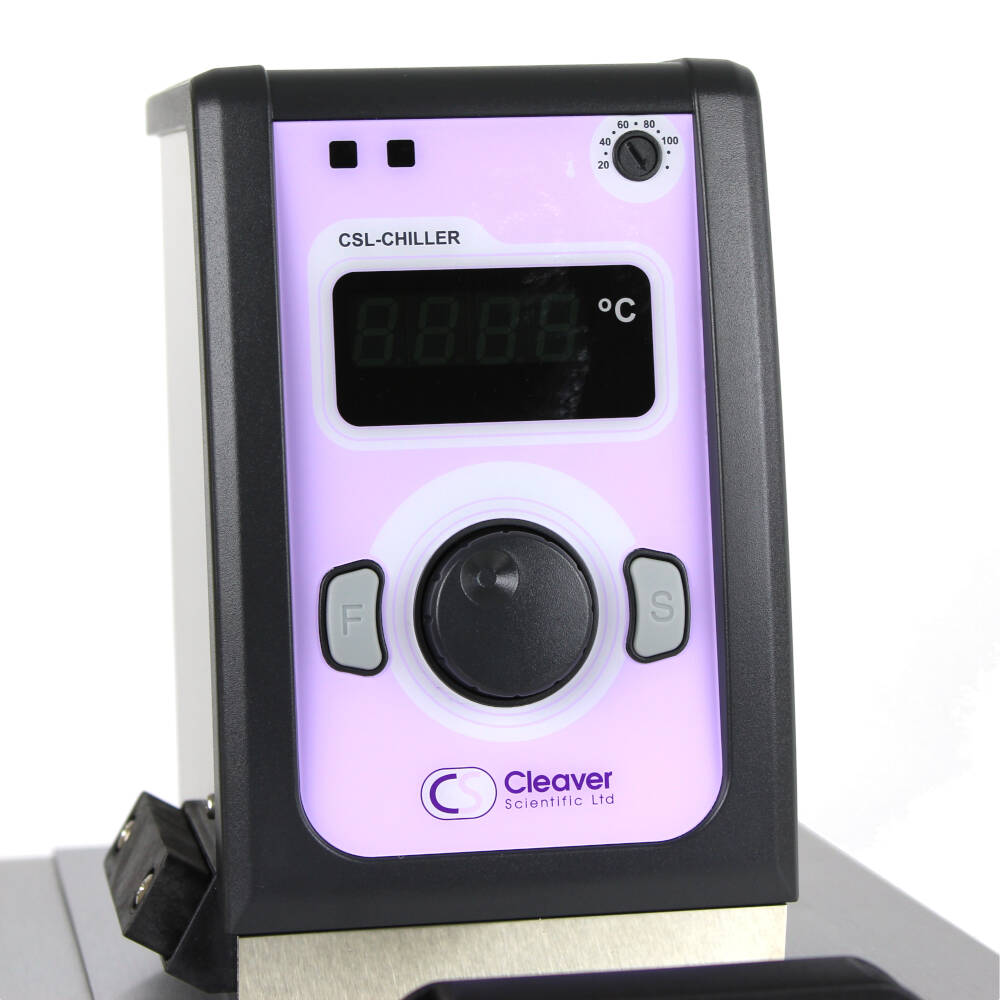

The immersion thermostat incorporates Intelligent Control Optimisation for adaptive intelligent PID temperature control and includes a powerful integral pump, making the system suitable both for immersing samples and circulating temperature controlled fluid to external devices. It includes a convenient timer function for reaction timing and a variable high temperature alarm setting.
The temperature range and heater power are automatically limited according to the liquid type selected.
| SKU | CSL-CHILLER | CSL-CHILLER$ |
|---|---|---|
| Temperature Range | -20°C to 120°C | -20°C to 120°C |
| Min operating temperature | -20°C to 120°C | -20°C to 120°C |
| Stability | ±0.05°C | ±0.05°C |
| Uniformity | ±0.1°C | ±0.1°C |
| Heater power | 1.3kW | 1.4kW |
| Max pump head pressure | 210mBar (no flow) | 210mBar (no flow) |
| Max pump flow rate | 16l/min | 16l/min |
| Input Voltage | 220-240V | 110-120V |
| Operating Temperature | 5 to 40°C | 5 to 40°C |
| Altitude above sea level | Up to 2,000m (6,500ft) | Up to 2,000m (6,500ft) |
| Operating environment | Indoor use only | Indoor use only |
| Maximum relative humidity | 80% RH up to 31°C decreasing to 50% RH at 40°C | 80% RH up to 31°C decreasing to 50% RH at 40°C |
| Max current consumption | 6.5A | 12.5A |
