proSET Parallel Fermentation System
- True parallel system, one controller for two vessels
- Single or dual vessels for independent or simultaneous control
- Duo heating system for thermostat and dry heating compatibility
- Free remote control software included in standard package
- Full compatibility with all optional devices
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.The proSET Parallel System is the ultimate and true parallel system for your parallel experiment. Whether you need to run two identical experiments or different experiments at once, the duo heating system allows you to run two thermostat heating, two dry heating or one thermostat and one dry heating simultaneously. This state-of-the-art design is constructed with the utmost versatility and flexibility to work with all types and sites of proSET vessels. The remote control software can control up to 16 vessels for true parallel operation.
Two independent vessels can be operated regardless of vessel type

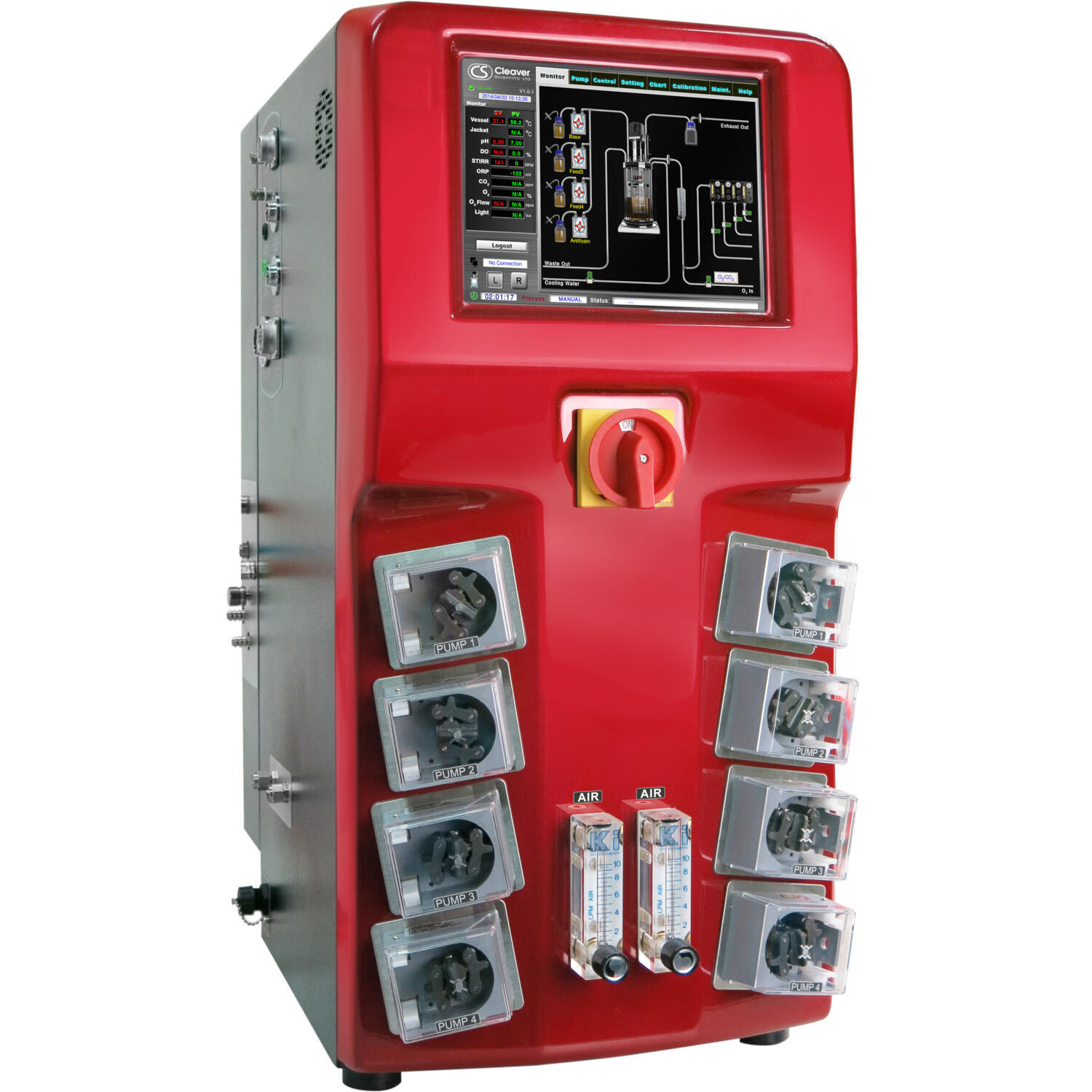

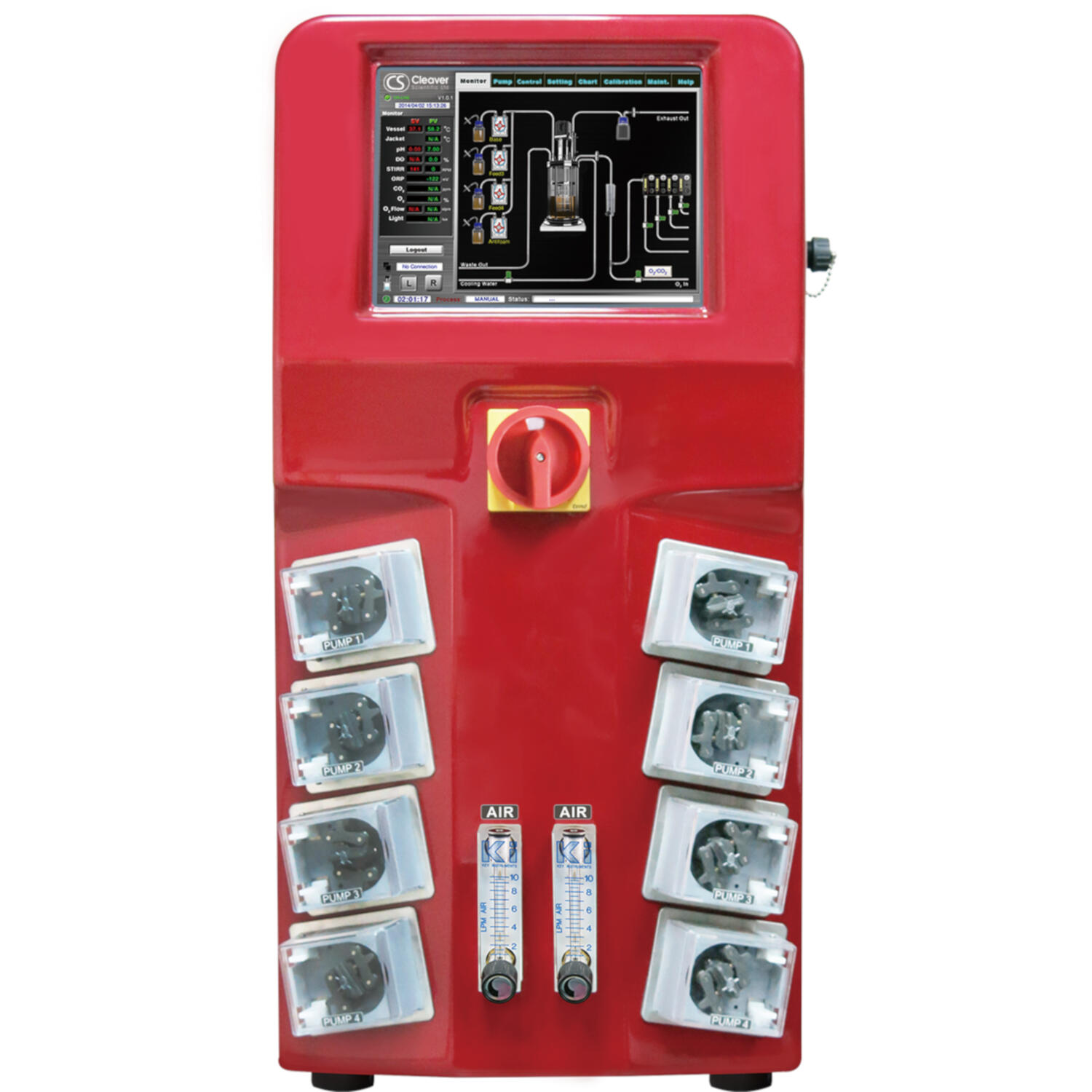

Control Unit
- Single or dual vessels for independent or simultaneous control
- Duo heating system for thermostat and dry heating compatibility
- Maintenance-free top drive brushless motor
- Linux based system for stable and smooth operation
- 15 steps programmable control on pH, temp., feeding, agitation for sophisticated protocol
- 8 integrated assignable and programmable Watson Marlow pump heads with high resistance to acid and base
- More than 59,994 storage programs and 100 process data files available
- pH & DO stat with smart feeding technology
- Purchase free for remote control software
- Flexible data exporting interface: USB port or PC connection
- Global exclusive real-time notification for control (Optional device required)
- Pre-configured software for up to 16-folds operation, optimized for all vessel types

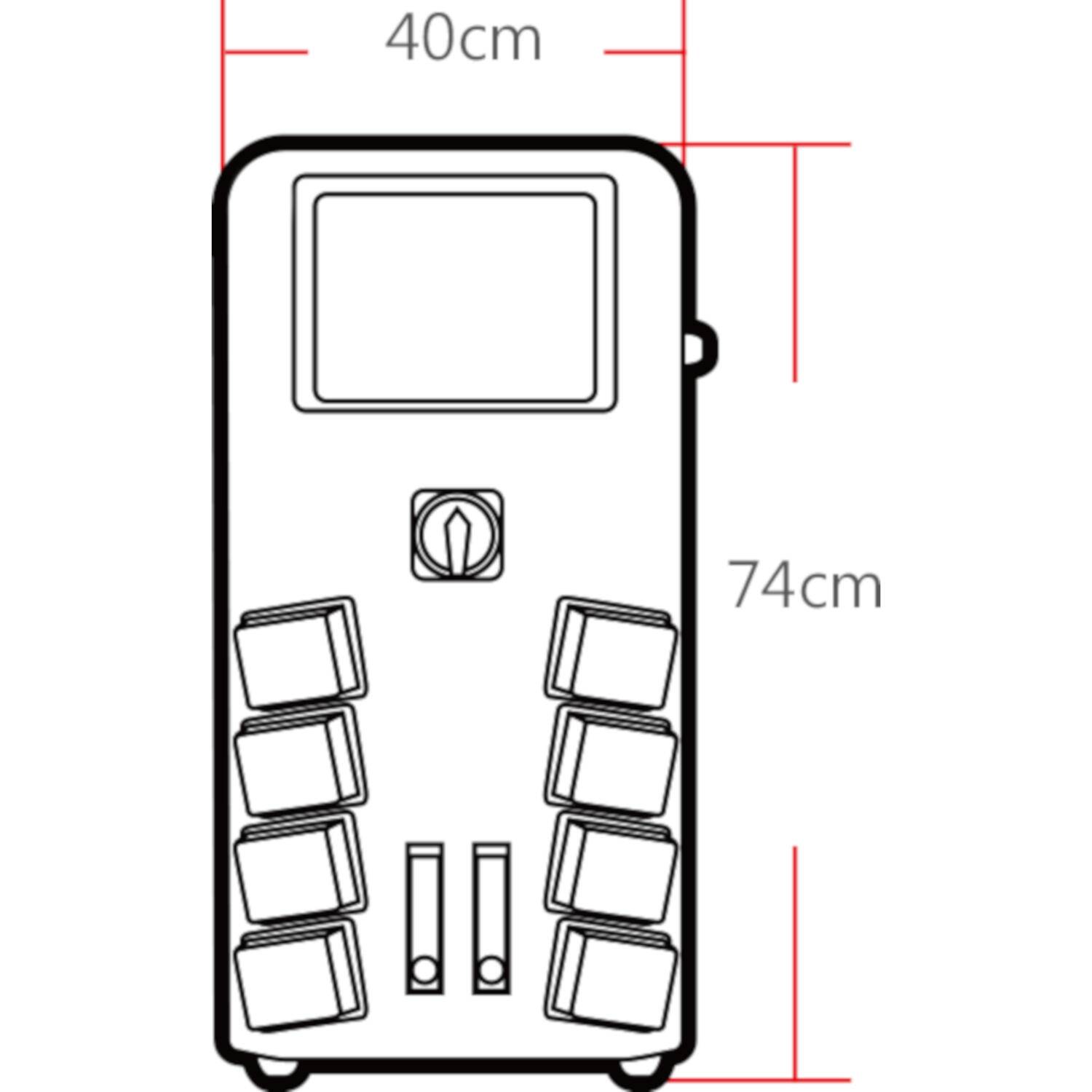

- Extreme compact in size: 400x540x740mm (WxLxH)
Autoclavable Glass Vessels:
- 4 different types of vessels for selection
- Up to 7 sizes of maximum working volumes for vessels: 0.5L, 1L, 3L, 5L, 10L, 15L and 20L
- Industry standard borosilicate glass and 316L stainless steel for headplate and all fittings
| Control unit | Control panel | 10.4" Color touch-screen interface |
| Communication port | Remote software control through Ethernet, up to 8 systems per PC | |
| Data export through USB port | ||
| Analog AUX port for system extension | ||
| Program storage | Up to 59,994 process programs | |
| Log data storage | Up to 100 process monitoring data files | |
| Cabinet material | ABS front panel and painted iron housing | |
| Dimension | Footprint: W x D = 15.75" x 21.26" (400mm x 540mm); Height: 29.14" (740mm) | |
| Rated voltage | 220V~; 50/60 Hz, 10A, 2000W | |
| Aeration | Inlet gas flow-meter | 0,0.1-1LPM (500ml), 0, 0.2-2.5LPM (1L), 0, 1-10LPM (3, 5L), 0, 2-25LPM (10L), 0, 4-50LPM (15, 20L) |
| Sparger | Orifice ring | |
| Baffle | Removable 316L stainless steel baffles | |
| Temperature | Heating | 1. Thermostat System: built-in heat exchanger (550W heater, water circulation pump) |
| 2. Dry heating system : external devices (heating blanket or heating base unit) | ||
| Cooling | Cooling coil and solenoid valve | |
| Range | 5°C (41°F) above coolant up to 60°C (140°F) | |
| Probe | Platinum RTD probe (PT-100), non autoclavable | |
| Control mode | Manual or Programmable 15 steps PID control | |
| Agitation | Drive | Removable top brushless motor |
| Speed range | 30 - 1200rpm (0.5, 1, 3, 5L)30 - 1000rpm (10L)30 - 700rpm (15, 20L) | |
| Resolution | 1 rpm increment | |
| Impeller | 2 impellers for 0.5-1 L vessel and double jacketed vessels3 impellers for 3 L vessel and above Note: Customized impellers are available upon ordering | |
| Control mode | Manual or Programmable 15 steps PID control | |
| pH | Range | 2 - 14pH |
| Resolution | 0.01pH | |
| Probe | Gel-filled electrode, autoclavable | |
| Control mode | Manual/Acid start/progrmmable 15 steps PID control | |
| DO | Range | 0 - 200% |
| Resolution | 0.1% | |
| Probe | Polarographic DO sensor; autoclavable | |
| Control mode | 2-stage DO cascade response: (Manual or Process mode) | |
| a. Increase or decrease agitation speed b. Supply external oxygen source using solenoid valve switch (Oxygen enrichment module required, optional device) c. Adjusting DO level using accurate gas mixing control (Gas mixing station module required, optional device) | ||
| Substrate feeding strategy | ||
| ORP(optional) | Measurement range | -/ 2000mV |
| Resolution | 1mV | |
| Probe | Gel-filled electrode: autoclavable | |
| Foam | Probe | 316L stainless steel protector with insulated PTFE tube; On/Off control, autoclavable, adjustable sensitivity control |
| Peristaltic Pump | Pump number | 4 x built-in Watson Marlow pumps per vessel (total 8); multiple external pump extendable (MU-D series required, optional) |
| Motor type | Precise stepping motor; minimum speed is 1rpm | |
| Speed range | 0 to 65rpm | |
| Resolution | 1rpm | |
| Control mode | Manual or Programmable 15 steps feeding control; pump can be assigned for Acid, Base, Antifoam and Substrate | |
| Exhaust | Device type | 316L stainless steel condenser |
