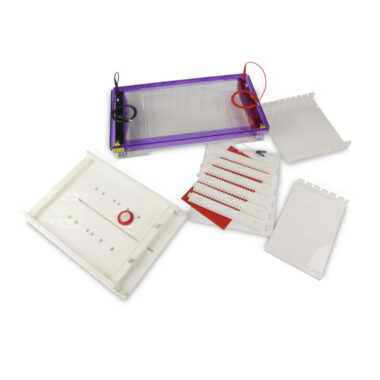

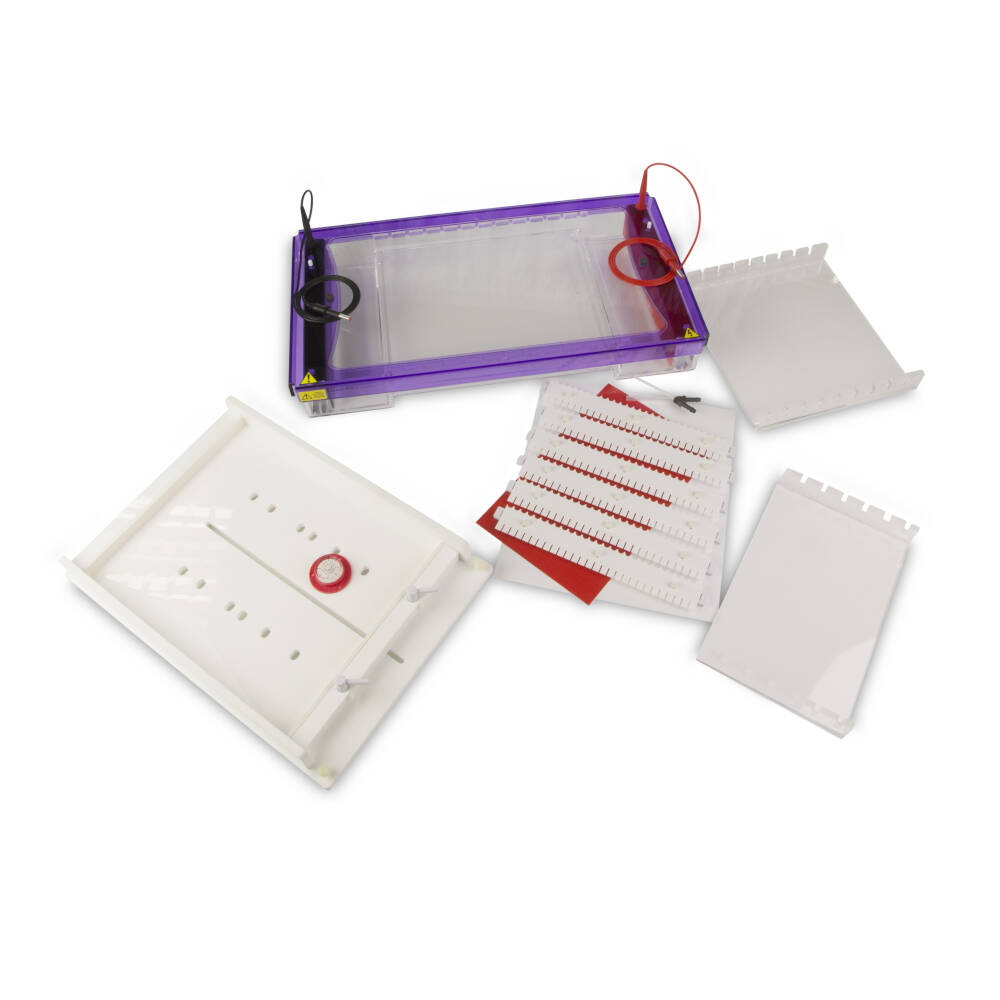

Designed for rapid screening of very large numbers of Clonal or PCR samples, the MultiSUB Screen horizontal gel unit has a 672 maximum sample capacity per gel. This allows loading and analysis of exactly seven 96-well format microtitre plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands, such as in restriction fragment analysis.The unit is available with a full length tray or with other tray length options of 16 or 24cm so that the user’s exact requirements can be matched. In addition to options for single length gel trays, the MultiSUB Screen is available with all three gel tray lengths to provide the maximum in flexibility, versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs while loading guides enhance well visibility for easy sample loading.All MultiSUB Screen units now have the MS26-FC Flexicaster included.
multiSUB Screen, High Throughput Horizontal Electrophoresis System
- Available with 26 x 16, 26 x 24 and 26 x 32cm, or all three gel trays
- Run up to 672 samples

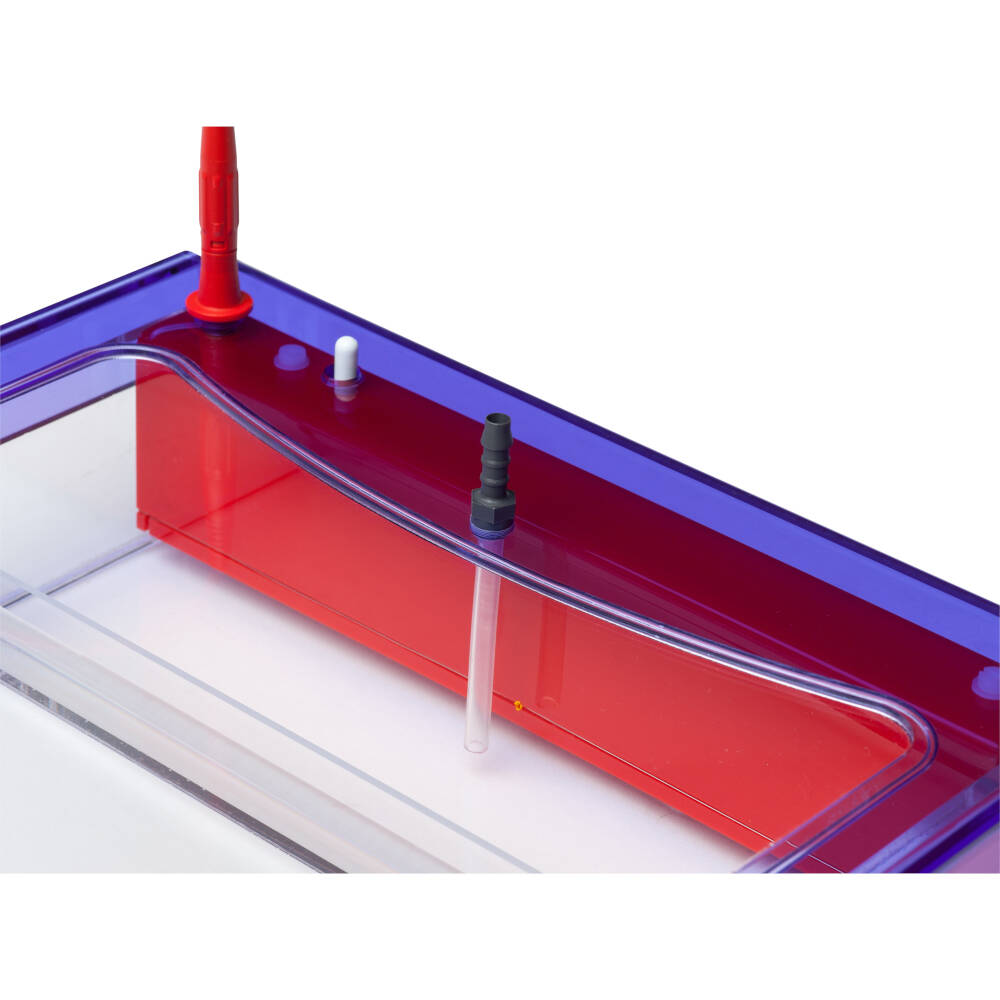

- Buffer recirculation included
- Multichannel pipette compatible combs for speed loading
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.SKU | MSSCREEN16 | MSSCREEN16-NC | MSSCREEN24 | MSSCREEN24-NC | MSSCREEN32 | MSSCREEN32-NC | MSSCREENTRIO | MSSCREENTRIO-NC |
---|---|---|---|---|---|---|---|---|
Unit Dimensions (cm) | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 | 28 x 50 x 9 |
Maximum Sample Capacity | 336 | 336 | 504 | 504 | 672 | 672 | 672 | 672 |
Base Buffer Volume | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
Buffer Recirculation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Flexicaster Options | MS26-FC | MS26-FC | MS26-FC | MS26-FC | MS26-FC | MS26-FC | MS26-FC | MS26-FC |
Typical Running Conditions | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes | 100-150V, 90-120 minutes |
Bromophenol Blue Migration Rate | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V | ~4-6cm/hr at 100-150V |
Gel Dimensions | 26 x 16 | 26 x 16 | 26 x 24 | 26 x 24 | 26 x 32 | 26 x 32 | 26 x 32 & 26 x 24 & 26 x 16 | 26 x 32 & 26 x 24 & 26 x 16 |
Please select a variation

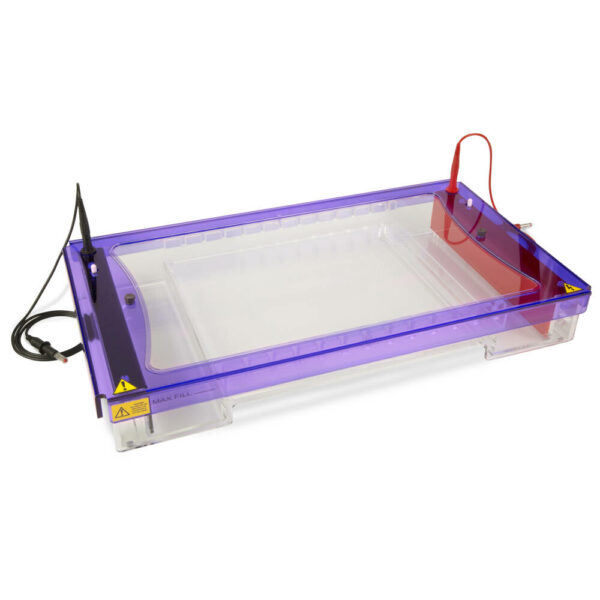

multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen - 26 x 32cm Gel tray - multiSUB Screen - 26 x 32cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1multiSUB Flexicasters - multiSUB Screen - Flexicaster
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform

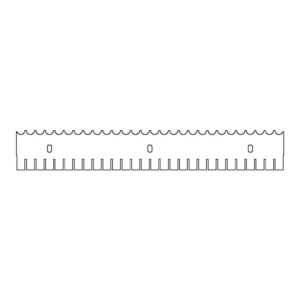

Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen - 26 x 16cm Gel tray - multiSUB Screen - 26 x 16cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen - 26 x 32cm Gel tray - multiSUB Screen - 26 x 32cm Gel tray
Qty: 1multiSUB Screen - 26 x 24cm Gel tray - multiSUB Screen - 26 x 24cm Gel tray
Qty: 1multiSUB Screen - 26 x 16cm Gel tray - multiSUB Screen - 26 x 16cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1multiSUB Flexicasters - multiSUB Screen - Flexicaster
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen - 26 x 16cm Gel tray - multiSUB Screen - 26 x 16cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1multiSUB Flexicasters - multiSUB Screen - Flexicaster
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen - 26 x 32cm Gel tray - multiSUB Screen - 26 x 32cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen - 26 x 24cm Gel tray - multiSUB Screen - 26 x 24cm Gel tray
Qty: 1multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1multiSUB Flexicasters - multiSUB Screen - Flexicaster
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen - 26 x 24cm Gel tray - multiSUB Screen - 26 x 24cm Gel tray
Qty: 1multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6multiSUB Screen Tank - multiSUB Screen Tank
Qty: 1multiSUB Screen - 26 x 32cm Gel tray - multiSUB Screen - 26 x 32cm Gel tray
Qty: 1multiSUB Screen - 26 x 24cm Gel tray - multiSUB Screen - 26 x 24cm Gel tray
Qty: 1multiSUB Screen - 26 x 16cm Gel tray - multiSUB Screen - 26 x 16cm Gel tray
Qty: 1multiSUB Screen Lid without cables - multiSUB Screen Lid without cables
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Screen - Loading Guides - multiSUB Screen - Loading Guides
Qty: 1multiSUB Screen - Viewing Platform - multiSUB Screen - Viewing Platform
Qty: 1multiSUB Screen Combs - multiSUB Screen Comb, 28 sample MC, 1mm thick
Qty: 6Instructions
Variant
Pack/Size
Price
Qty
multiSUB Screen with 26x16cm, 26x24cm, 26x32cm Gel trays including caster
1 / Each
Price: £1,184.91 ex. VAT
multiSUB Screen with 26x16cm, 26x24cm, 26x32cm Gel trays (NO CASTER)
1 / Each
Price: £1,013.21 ex. VAT
