With gel tray options of 10 x 7cm and 10 x 10cm, the MultiSUB Midi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the MultiSUB Mini, without a significant increase in buffer or gel volumes.A maximum of 100 samples per gel can be resolved, making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths. Loading guides allow easy well identification and sample loading. Scoops are also available as an option to allow safe transfer of gels.

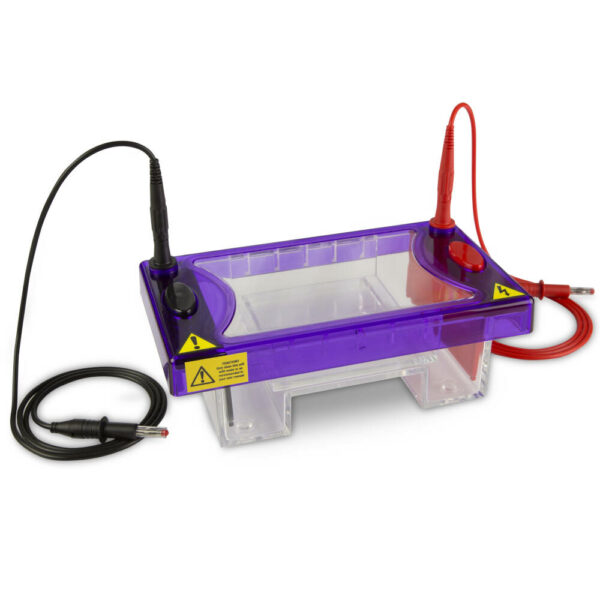

multiSUB Midi, Midi Horizontal Electrophoresis System
- Available with 10 x 7cm, 10 x 10cm or with both gel trays
- Run up to 100 samples
- Low buffer volumes
- Ideal for rapid electrophoresis
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.SKU | MSMIDI10 | MSMIDI7 | MSMIDIDUO |
---|---|---|---|
Unit Dimensions (cm) | 12.5 x 22 x 9 | 12.5 x 22 x 9 | 12.5 x 22 x 9 |
Maximum Sample Capacity | 100 | 50 | 100 |
Base Buffer Volume | 300 | 300 | 300 |
Buffer Recirculation | No | No | No |
Flexicaster Options | MS7/10-FC, MS15/20-FC, MS26-FC | MS7/10-FC, MS15/20-FC, MS26-FC | MS7/10-FC, MS15/20-FC, MS26-FC |
Typical Running Conditions | 90V, 45-60 minutes | 90V, 45-60 minutes | 90V, 45-60 minutes |
Bromophenol Blue Migration Rate | ~4-5cm/h at 90V | ~4-5cm/h at 90V | ~4-5cm/h at 90V |
Gel Dimensions | 10 x 10 | 10 x 7 | 10 x 7 & 10 x 10 |
Please select a variation

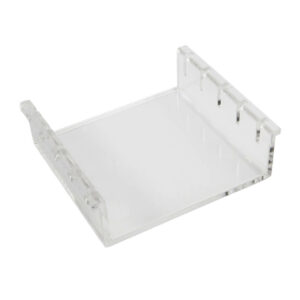

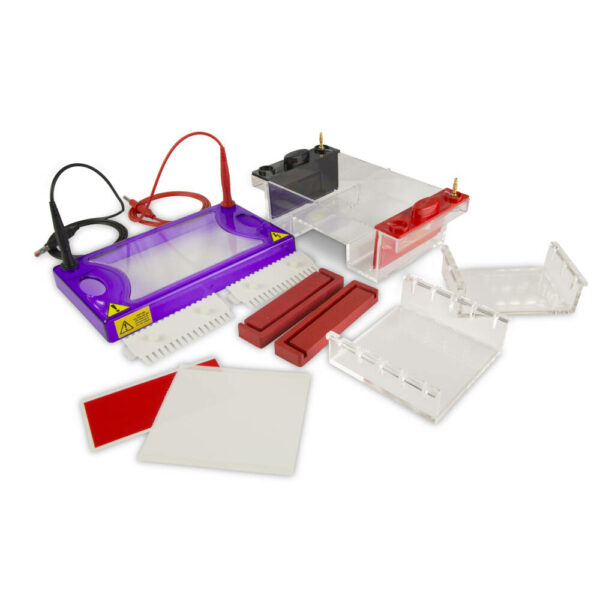

multiSUB Midi - 10 x 10cm Gel tray - multiSUB Midi - 10 x 10cm Gel tray
Qty: 1multiSUB Midi Lid - multiSUB Midi Lid
Qty: 1multiSUB Midi Tank - multiSUB Midi Tank

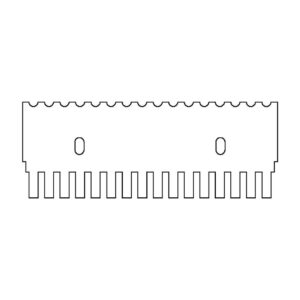

Qty: 1multiSUB Midi Combs - multiSUB Midi Comb, 16 sample, 1mm thick
Qty: 2multiSUB Midi - Gel tray Dams - multiSUB Midi - Gel tray Dams
Qty: 1multiSUB Midi - Viewing Platform - multiSUB Midi - Viewing Platform
Qty: 1multiSUB Midi - Loading Guides - multiSUB Midi - Loading Guides
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Midi - 10 x 10cm Gel tray - multiSUB Midi - 10 x 10cm Gel tray

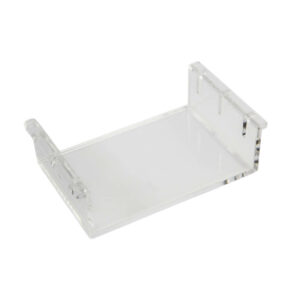

Qty: 1multiSUB Midi - 10 x 7cm Gel tray - multiSUB Midi - 10 x 7cm Gel tray
Qty: 1multiSUB Midi Lid - multiSUB Midi Lid
Qty: 1multiSUB Midi Tank - multiSUB Midi Tank
Qty: 1multiSUB Midi Combs - multiSUB Midi Comb, 16 sample, 1mm thick
Qty: 2multiSUB Midi - Gel tray Dams - multiSUB Midi - Gel tray Dams
Qty: 1multiSUB Midi - Viewing Platform - multiSUB Midi - Viewing Platform
Qty: 1multiSUB Midi - Loading Guides - multiSUB Midi - Loading Guides
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1multiSUB Midi - 10 x 7cm Gel tray - multiSUB Midi - 10 x 7cm Gel tray
Qty: 1multiSUB Midi Lid - multiSUB Midi Lid
Qty: 1multiSUB Midi Tank - multiSUB Midi Tank
Qty: 1multiSUB Midi Combs - multiSUB Midi Comb, 16 sample, 1mm thick
Qty: 2multiSUB Midi - Gel tray Dams - multiSUB Midi - Gel tray Dams
Qty: 1multiSUB Midi - Viewing Platform - multiSUB Midi - Viewing Platform
Qty: 1multiSUB Midi - Loading Guides - multiSUB Midi - Loading Guides
Qty: 1Electrophoresis cable (Black & Red) - Electrophoresis cable (Black & Red)
Qty: 1Instructions
