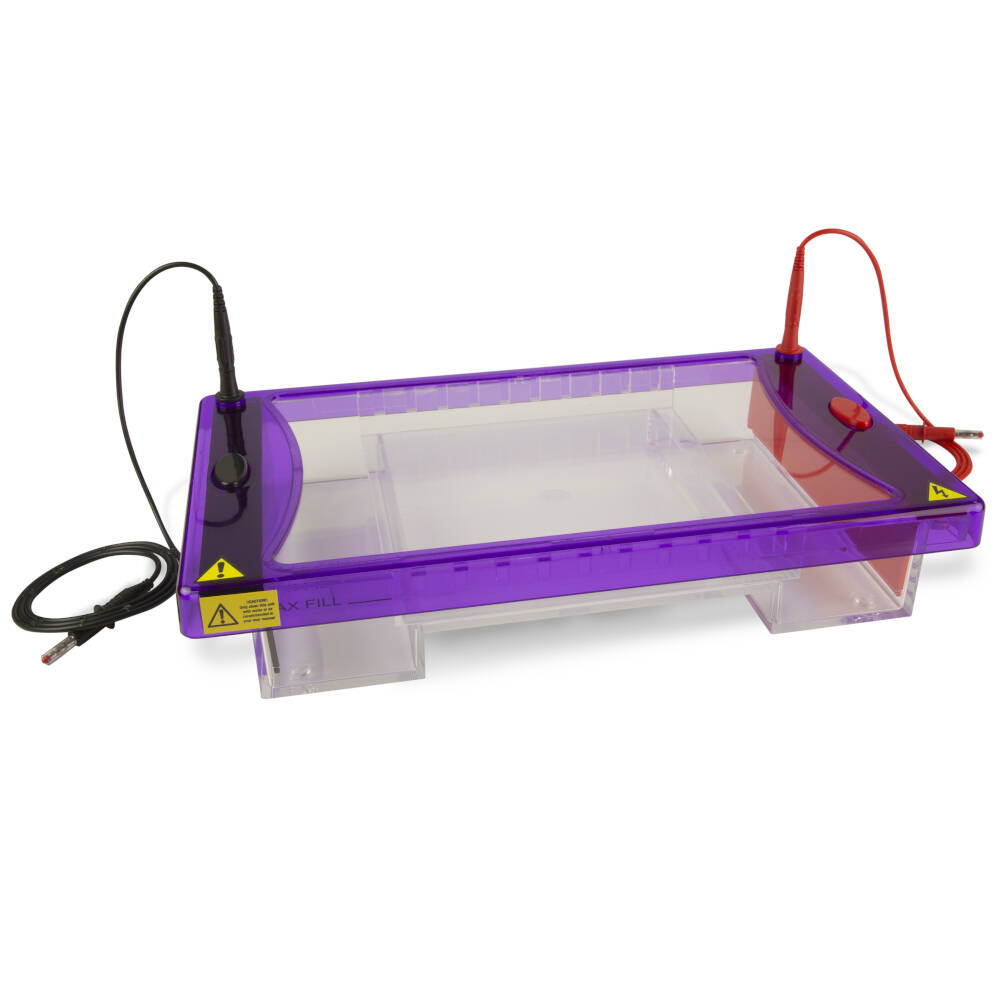

multiSUB Maxi, Maxi Horizontal Electrophoresis System
- Now available with 20 x 25cm, 20 x 20cm, 20 x 15cm or 20 x 10cm gel trays
- Run up to 550 samples
- Low buffer volumes
- Ideal for extended separations
The MultiSUB Maxi is primarily designed for resolution of high numbers of samples, such as from Cloning or PCR. The MultiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.Four gel tray sizes are available; 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs of up to 40 samples facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel. Casting dams allow gels to be rapidly cast externally while the MultiSUB Maxi unit is in use for gel running.
| SKU | MSMAXI10 | MSMAXI15 | MSMAXI20 | MSMAXI25 | MSMAXIDUO |
|---|---|---|---|---|---|
| Unit Dimensions (cm) | 23 x 39.5 x 9 | 23 x 39.5 x 9 | 23 x 39.5 x 9 | 23 x 39.5 x 9 | 23 x 39.5 x 9 |
| Maximum Sample Capacity | 200 | 350 | 450 | 550 | 450 |
| Base Buffer Volume | 1200 | 1200 | 1200 | 1200 | 1200 |
| Buffer Recirculation | Requires MS20LID-BP | Requires MS20LID-BP | Requires MS20LID-BP | Requires MS20LID-BP | Requires MS20LID-BP |
| Flexicaster Options | MS15/20-FC, MS26-FC | MS15/20-FC, MS26-FC | MS15/20-FC, MS26-FC | MS15/20-FC, MS26-FC | MS15/20-FC, MS26-FC |
| Typical Running Conditions | 100-150V, 60-90 minutes | 100-150V, 60-90 minutes | 100-150V, 60-90 minutes | 100-150V, 60-90 minutes | 100-150V, 60-90 minutes |
| Bromophenol Blue Migration Rate | ~4-6.5cm/h at 100-150V | ~4-6.5cm/h at 100-150V | ~4-6.5cm/h at 100-150V | ~4-6.5cm/h at 100-150V | ~4-6.5cm/h at 100-150V |
| Gel Dimensions | 20 x 10 | 20 x 15 | 20 x 20 | 20 x 25 | 20 x 10 & 20 x 20 |

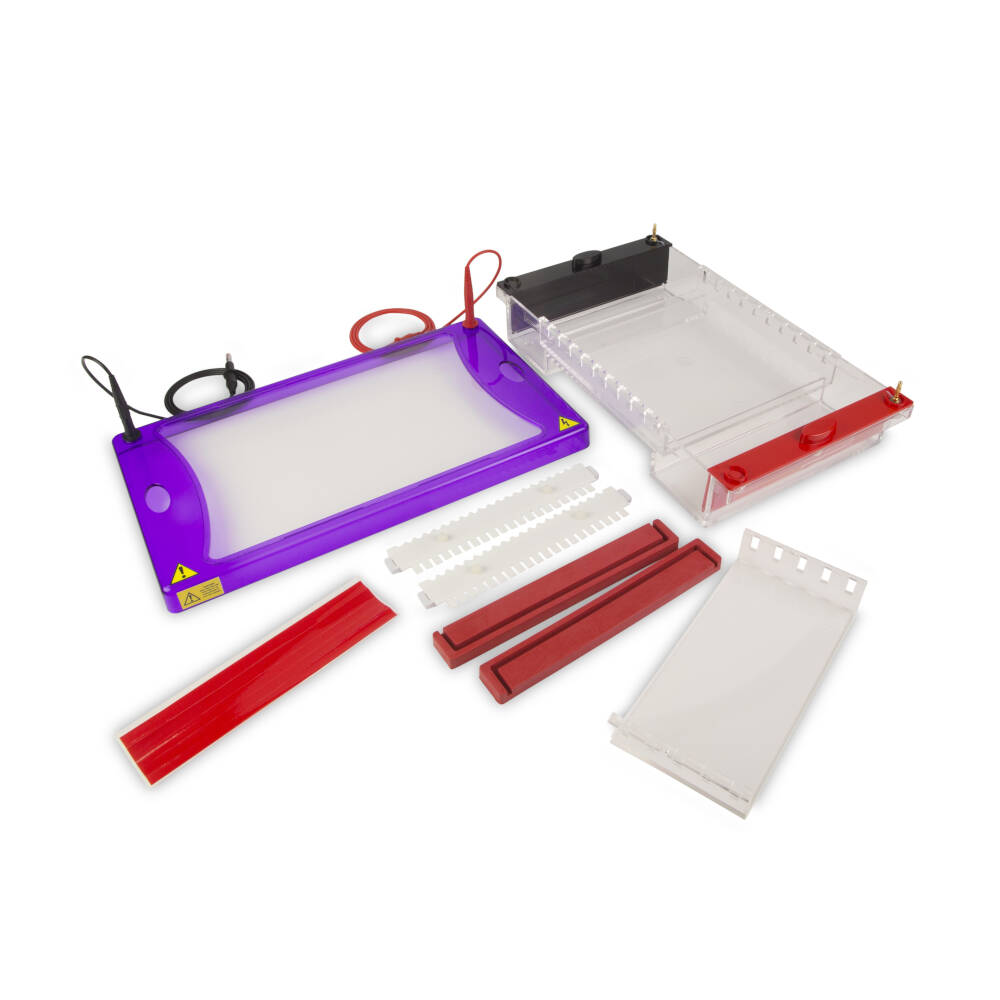

multiSUB Maxi - 20 x 10cm Gel tray
Qty: 1
multiSUB Maxi Lid
Qty: 1
multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2
multiSUB Maxi - Gel tray Dams
Qty: 1
multiSUB Maxi Tank (Including Electrodes)
Qty: 1
multiSUB Maxi - Viewing Platform
Qty: 1
multiSUB Maxi - Loading Guides
Qty: 2
Electrophoresis cable (Black & Red)
Qty: 1multiSUB Maxi - 20 x 10cm Gel tray
Qty: 1multiSUB Maxi Lid
Qty: 1multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2multiSUB Maxi - Gel tray Dams
Qty: 1multiSUB Maxi Tank (Including Electrodes)
Qty: 1multiSUB Maxi - Viewing Platform
Qty: 1multiSUB Maxi - Loading Guides
Qty: 2Electrophoresis cable (Black & Red)
Qty: 1
multiSUB Maxi - 20 x 20cm Gel tray
Qty: 1
multiSUB Maxi - 20 x 25cm Gel tray
Qty: 1multiSUB Maxi Lid
Qty: 1multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2multiSUB Maxi - Gel tray Dams
Qty: 1multiSUB Maxi Tank (Including Electrodes)
Qty: 1multiSUB Maxi - Viewing Platform
Qty: 1multiSUB Maxi - Loading Guides
Qty: 2Electrophoresis cable (Black & Red)
Qty: 1multiSUB Maxi - 20 x 20cm Gel tray
Qty: 1multiSUB Maxi Lid
Qty: 1multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2multiSUB Maxi - Gel tray Dams
Qty: 1multiSUB Maxi Tank (Including Electrodes)
Qty: 1multiSUB Maxi - Viewing Platform
Qty: 1multiSUB Maxi - Loading Guides
Qty: 2Electrophoresis cable (Black & Red)
Qty: 1
multiSUB Maxi - 20 x 15cm Gel tray
Qty: 1multiSUB Maxi Lid
Qty: 1multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2multiSUB Maxi - Gel tray Dams
Qty: 1multiSUB Maxi Tank (Including Electrodes)
Qty: 1multiSUB Maxi - Viewing Platform
Qty: 1multiSUB Maxi - Loading Guides
Qty: 2Electrophoresis cable (Black & Red)
Qty: 1multiSUB Maxi - 20 x 20cm Gel tray
Qty: 1multiSUB Maxi - 20 x 10cm Gel tray
Qty: 1multiSUB Maxi Lid
Qty: 1multiSUB Maxi Combs - multiSUB Maxi Comb, 20 sample MC, 1mm thick
Qty: 2multiSUB Maxi - Gel tray Dams
Qty: 1multiSUB Maxi Tank (Including Electrodes)
Qty: 1multiSUB Maxi - Viewing Platform
Qty: 1multiSUB Maxi - Loading Guides
Qty: 2Electrophoresis cable (Black & Red)
Qty: 1
