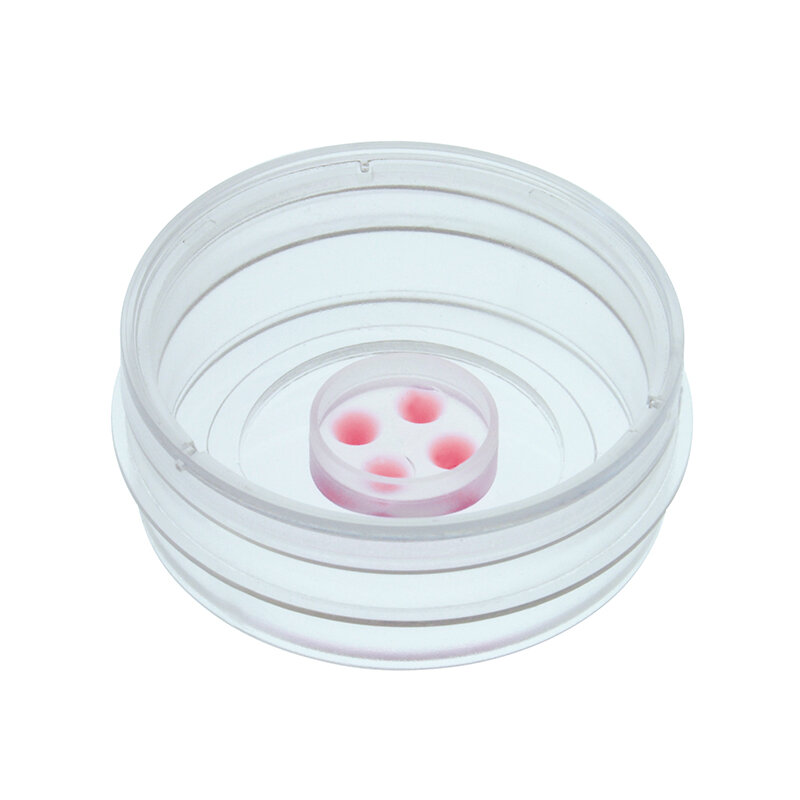

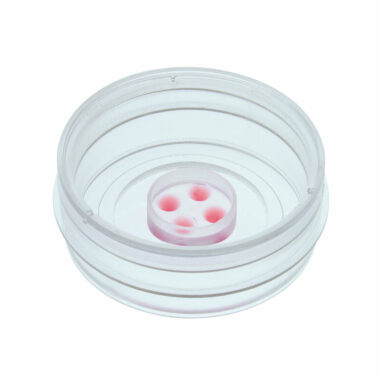

micro-Insert 4 Well FulTrac in µ-Dish 35 mm, high
- Allows for long-term microscopy assays of single cells
- Cultivation of small numbers of cells without evaporation risks
- Conical wells for superb optical quality
- Complete coverage of the well using a 20x objective
- Individual inserts for single experiments
- Ideal cell growth on ibiTreat surface
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.A 4-well silicone insert used for tracing individual cells (adherent and suspension)
- Allows for long-term microscopy assays of single cells
- Cultivation of small numbers of cells without evaporation risks
- Conical wells for superb optical quality
- Complete coverage of the well using a 20x objective
- Individual inserts for single experiments
- Ideal cell growth on ibiTreat surface
Applications
- Live cell imaging of adherent and suspension cells
- Immunofluorescence assays
- Performing long-term microscopy assays lasting up to several weeks
- Cell tracking of single cells over time
- Cell differentiation (e.g., single stem cells)
Technical Features
- Four small Ø 0.4 mm microscopy wells
- Suspension cells cannot escape the observation field
- Adhesive underside
- Transferable to any flat, clean surface
- No material is left behind after the insert is removed
- Includes a rim for easy handling of the insert with tweezers
Specifications Table
| Number of wells | 4 |
| Dimensions of wells in mm | Ø 0.4 |
| Diameter of the complete insert | 12 mm |
| Height of the complete insert | 4.3 mm |
| Volume per well | 10 µl |
| Growth area per well | 0.0012 cm2 |
| Coating area per well | 0.188 cm2 |
| Material | Biocompatible silicone |
| Bottom | No bottom – sticky underside |
| Number of wells | 4 |
| Dimensions of wells in mm | Ø 0.4 |
| Diameter of the complete insert | 12 mm |
| Height of the complete insert | 4.3 mm |
| Volume per well | 10 µl |
| Growth area per well | 0.0012 cm2 |
| Coating area per well | 0.188 cm2 |
| Material | Biocompatible silicone |
| Bottom | No bottom – sticky underside |
Instructions
