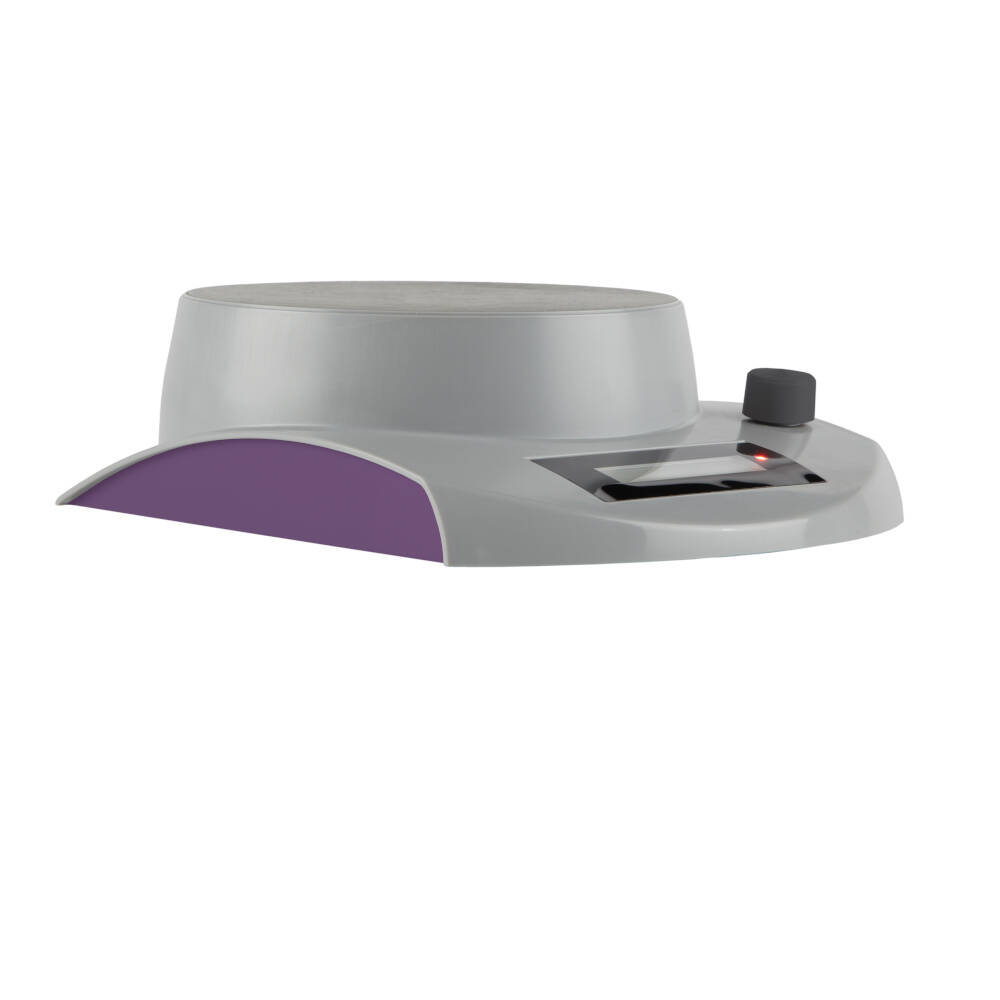

Magnetic Induction Stirrer

SKU: CLV-ISTIR2 UNSPSC: 41103806 Manufacturer Part No: ISTIR2 Pack Size: 1
  • Durable ABS housing is corrosion resistant and easy to clean
  • Wear-free magnetic coils offer consistent and noiseless operation
  • An easy to read digital display precisely controls time and speed enabling reproducible conditions
  • Unit is programmable with 50% duty up to 99 cycles
  • Time and speed can be conveniently adjusted while the unit is running
  • Reverse rotation option for better mixing results
  • Speed remains constant, even when load changes
  • Rapid acceleration and braking (less than 10 seconds) to quickly meet stirring speed requirements
  • Silicone rubber mat on lid prevents slipping of vessels and improves safety
  • Included stir bars have PTFE coating for chemical resistance
Special Requirements?

Build out your order then request a quote from your cart.

Price: £483.40 ex. VAT

VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

The Magnetic Induction Stirrer uses modern magnetic coil technology that has no moving parts resulting in a motor-less wear-free drive and maintenance free unit. High-quality rare-earth magnets are used in the stirrer design to ensure a strong magnetic coupling with consistent accurate alignment which significantly reduces the chance of spin-outs.

  • Durable ABS housing is corrosion resistant and easy to clean
  • Wear-free magnetic coils offer consistent and noiseless operation
  • An easy to read digital display precisely controls time and speed enabling reproducible conditions
  • Unit is programmable with 50% duty up to 99 cycles
  • Time and speed can be conveniently adjusted while the unit is running
  • Reverse rotation option for better mixing results
  • Speed remains constant, even when load changes
  • Rapid acceleration and braking (less than 10 seconds) to quickly meet stirring speed requirements
  • Silicone rubber mat on lid prevents slipping of vessels and improves safety
  • Included stir bars have PTFE coating for chemical resistance

Package Includes: Magnetic Induction Stirrer, 2 Stir bars 35L mm x 12DIA. mm Cylindrical Shape, 1 low voltage, double insulated power adapter with 4 interchangeable plugs

Speed Range: 10 to 2,000rpm, 1 rpm increments

Run Time Ranges:

Stirrer Mode: 0’30” to 60’0” or continuous

Oscillating Mode: 0’30” to 60’0” and 1–99 cycles

Oscillating Period: 50% duty cycle

Capacity: 3 Liters PlU.S.

Mixing Surface: Approx. 160 mm in diameter

Weight: 1.13 kg (2.50 lb.)

Electrical:

Power Adapter Rating:

Input: 100-240 VAC 50/60 Hz 1.0A

Output: 12 VDC 2.2A

Stirrer Rating:

Input: 12 VDC

Current (under load): Approx. 1.5 A

Power: Approx. 18W

Dimensions: 24.5 x 19.5 x 7.5 cm
