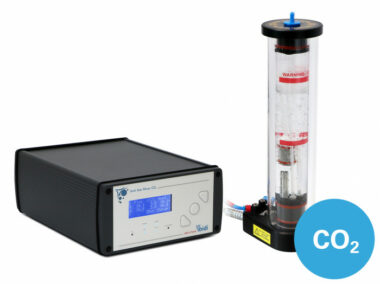

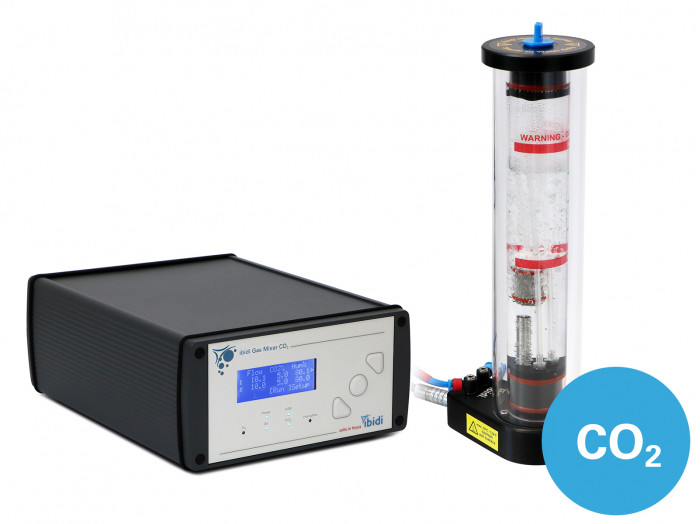

If you are looking for a quote, you can request this here.A gas mixer for long-term live cell imaging applications with precise, active humidity control and CO2 regulation
Applications
The ibidi Gas Incubation System is ideal for live cell imaging experiments that require physiologic conditions on the microscope.
Combined with the ibidi Heating System, it serves as a complete Stage Top Incubator, precisely controlling essential parameters such as temperature, humidity, and CO2 levels on the microscope to get reproducible results of, for example:
- Chemotaxis assays
- Angiogenesis assays
- Cell migration assays
- Wound healing assays
- Proliferation assays
- Cell culture under flow assays
- Hypoxia and oxygen depletion experiments (only ibidi Gas Incubation System CO2/O2 – Silver Line)
Technical Features
- Precise and reliable gas incubation for CO2
- Prevents evaporation inside the Incubation Chamber by active, feedback-controlled humidity regulation (ibidi’s patented Humidity Control)
- Also available with CO2 and O2 control for hypoxia and oxygen depletion experiments: ibidi Gas Incubation System CO2/O2 – Silver Line
- Uses pressurized air to create the gas flow (no vibrations)
- Optional Air Pressure Generator available (for when pressurized air is not obtainable)
- Can be combined with the ibidi Heating System to create a complete Stage Top Incubator for long-term physiologic conditions on the microscope with controlled temperature, humidity, and CO2
- Humidity measurement close to the sample
- Including IncuControl software for remote control and data recording

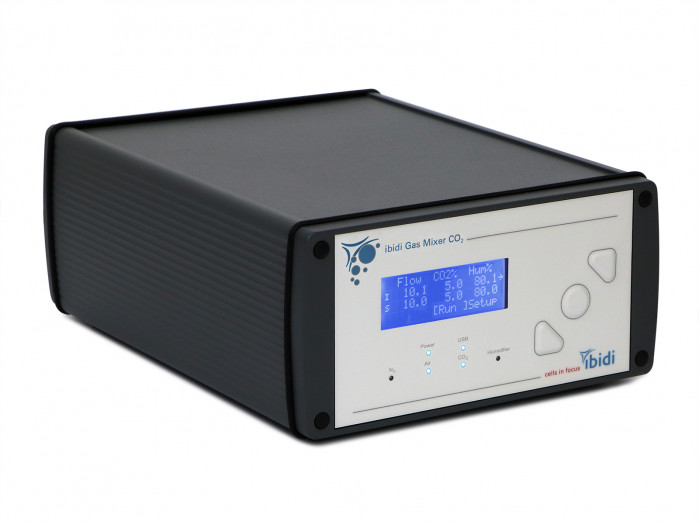

| ibidi Gas Mixer – Silver Line | |
| Operating humidity | Max. 80% relative humidity |
| Operating temperature | 18–30°C/64–86°F |
| Dimensions | 90 x 170 x 230 mm³ |
| Weight | 2230 g / 4.9 lbs |
| External power supply | AC 100–240 V, 50/60 Hz, 1.4 A |

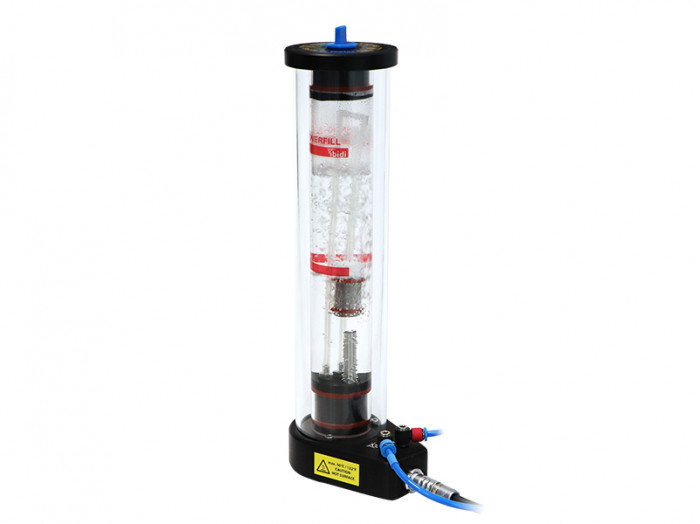

| Humidifying Column | |
| Operating humidity | Max. 80% relative humidity |
| Dimensions | 70 x 110 x 300 mm³ |
| CO2 Control | |
| Control range | 0–15% |
| Resolution | 0.1% |
| Flow Control Mixed Gas | |
| Control range | 0–20 l/h |
| Humidity Control | |
| Control range | 20–99% relative humidity (lower limit is dependent on environment and gas supply, minimum set humidity is 0%) |
| Resolution | 0.1% |
| Gas Supply (Input) | |
| Pressurized air | 1 bar / 14.5 psi optimum (0.8–1.2 bar / 11.6–17.4 psi) |
| CO2 | 1 bar / 14.5 psi optimum (0.8–1.2 bar / 11.6–17.4 psi) |
| Tubing for all gases (supplied with the system) | PUR/PUN tubing 4 mm inner diameter 6 mm outer diameter 1 mm wall thickness |
