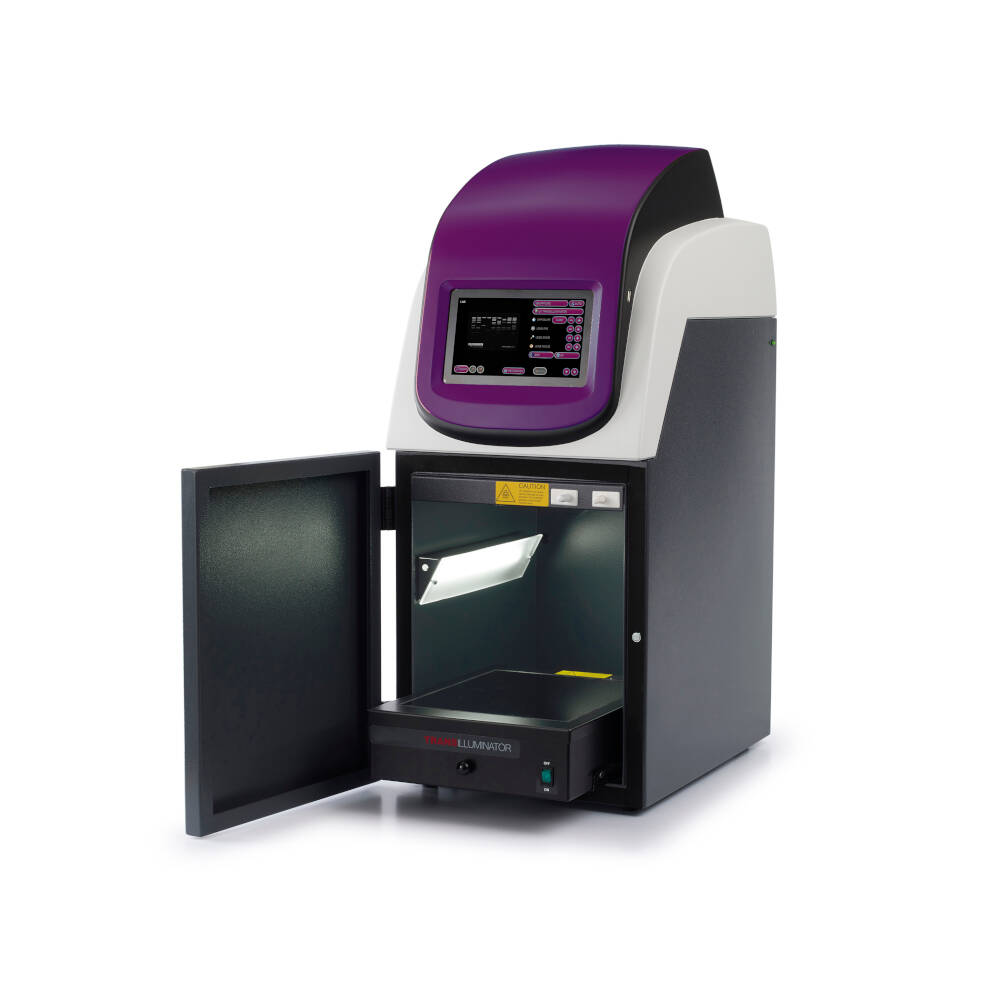

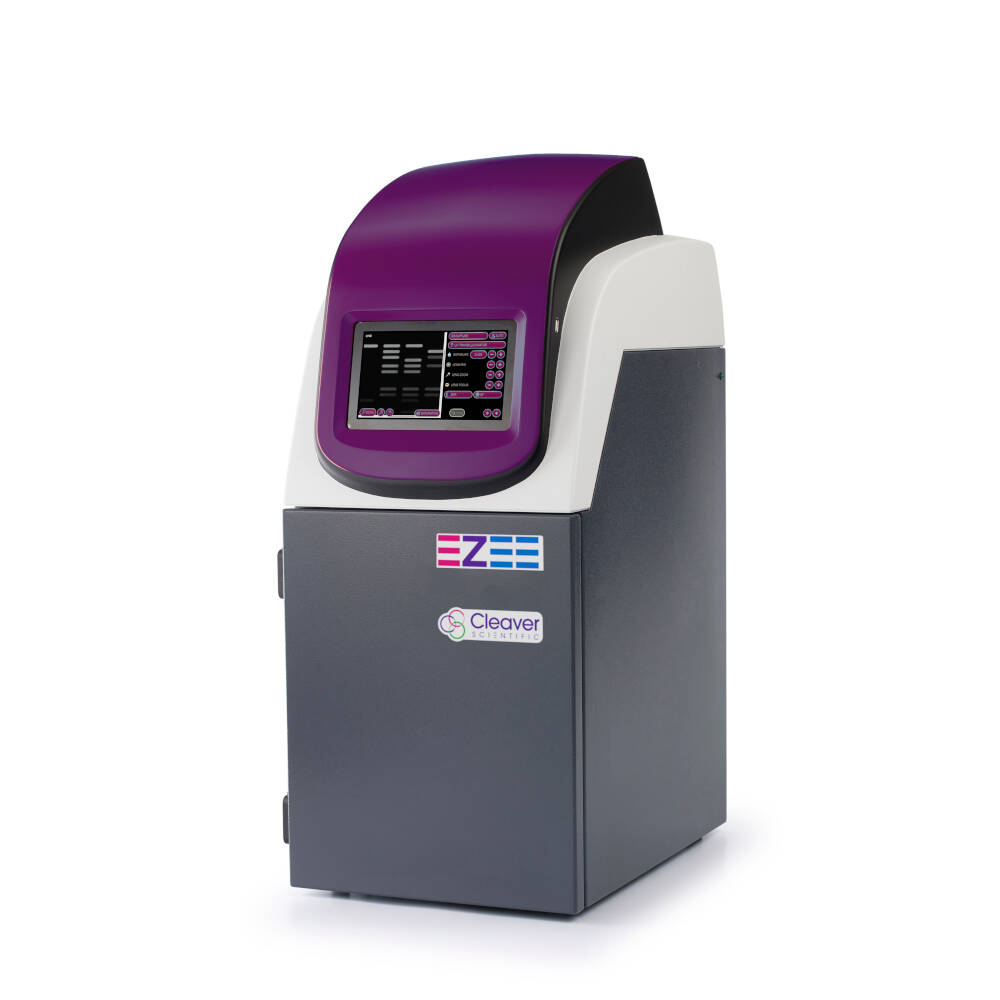

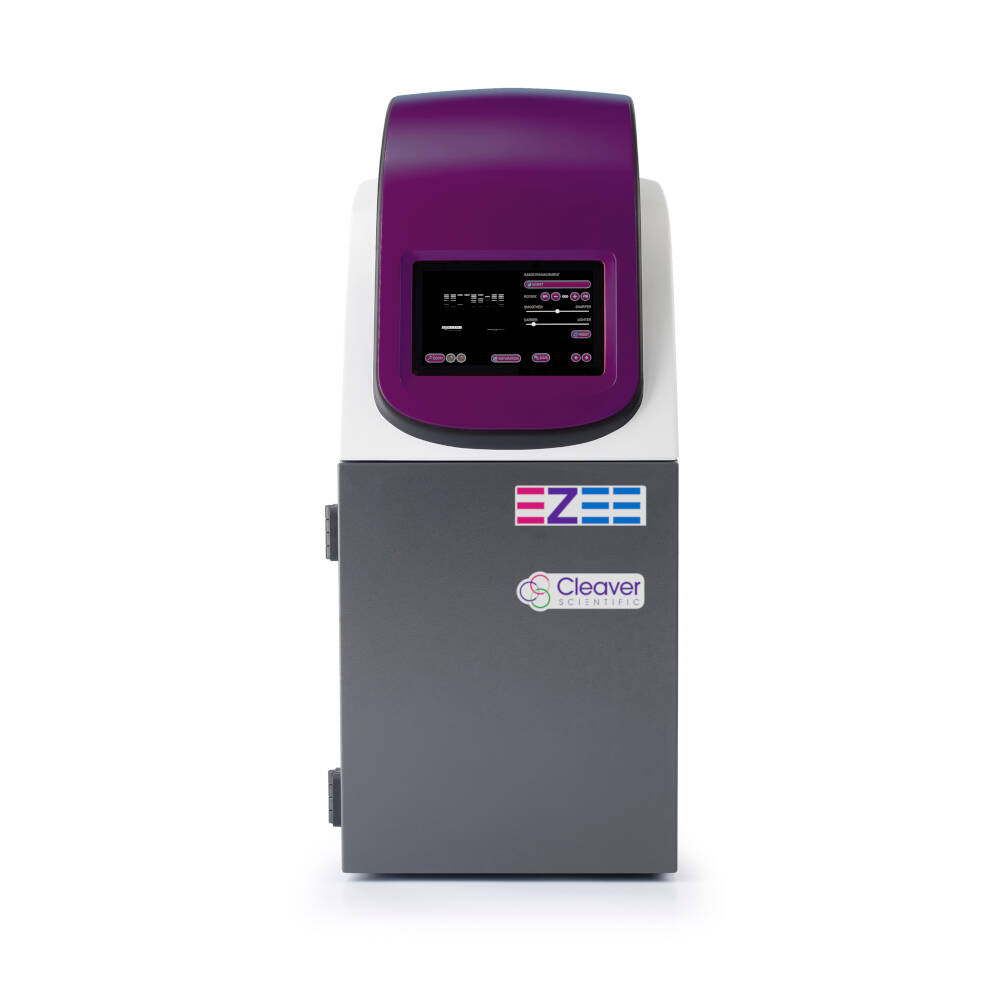

gelONE-XE Gel Documentation System with in built touch screen

  • In built 7” touch screen with intuitive acquisition software
  • 5 megapixel camera with excellent low light sensitivity
  • Integrated computer dedicated to imaging for efficient acquisition
  • f/1.2 motor driven zoom lens
  • White LED lighting for sample positioning
  • Safety switch prevents accidental UV exposure
  • Included 302nm UV transilluminator and imaging filter with a range of options available
UK Support
Clear

Sorry, this product is currently Out of stock

The NEW gelONE-XE is a stand-alone gel documentation system which replaces both the gelONE and the gelONEPLUS previously offered in our range.

It comes with a powerful New Window Operating  system that allows smoother running of the software and image acquisition.

It is also now possible to store the images directly on the system thanks to the 80gb hard drive internal memory.

The new touchscreen PC comes with 5 USB connectivity ports which can connect directly to an external PC for image transfer and to a printer, mouse or keypad if desired.

It is also now possible to network through a LAN port without the requirement of the optional USB-Dongle saving on this cost.

The enhanced camera is now able to capture stain free gel images as standard (before only the gelONEPLUS was suitable to this application).

The higher sensitivity lens and camera sensor on the gelONE-XE also provide higher resolution images compared to its predecessors.

The gelONE XE system has been designed for stain free applications, it also supports multiple applications, including DNA/RNA gel imaging such as EtBr, SYBR Green and visible stained gels, i.e. Coomassie Blue and silver stain. The geneQUANT advanced image analysis package is included with the system license free.


APPLICATIONS

  • DNA: with gelOne-XE, you can use the UV transilluminator to capture images of DNA gels stained with Ethidium Bromide.
  • AutoradFilm: featuring a 5-million-pixel resolution camera ideal for capturing image srequiring great detail. This is especially true when looking for separation between bands or spots. Capturing high-quality images of Autorads is one of the strengths of gelOne-XE.
  • Visible Light: with the visible light converter, gelOne-XE can be used to view gels stained with, e.g. Silver stain and Coomassie blue. You can also view tissues, slides and films.
  • Blue Light: a blue light conversion screen is available for applications requiring blue light excitation, e.g., “Safe” dyes such as GFP, SYBR®Green, SYBR Gold, SYBR Safe, SYPRO Ruby, Safe View and Flamingo.
  • Stain Free; gelOne-XE is capable of capturing stain free images automatically. Stain-free technology removes extra steps and long delays from staining with dyes such as Coomassie blue.




Download a demonstration version of the system software here

Camera 5 million pixel
Sensor 1/2.5 inch
Bit depth 12/16 bit
Greyscale 65,536
Dynamic range 3.6/4.8 (extended)
Lens 8 – 48mm f/1.2
FilterUV032 filter as standard
Sample size 20 x 24cm
Data types TIFF and JPEG
Image enhancement Rotation and inversion, sharpen, smooth and more
Image storageMemory 80GB,  USB or network
Operating systemWindows 10 Enterprise LTSC
USB ports3xUSB3, 2xUSB2
Illumination
Slim transilluminator 20 x 24cm Option
Blue converter screen  Option
Visible light converter Option
Internal white Epi light Yes
7 inch touch screen with powerful Window OS
Software
Image capture Yes
geneQUANT analysis Yes
Dimensions
H x W x D cm 75 x 31 x 45
Weight 20kg
