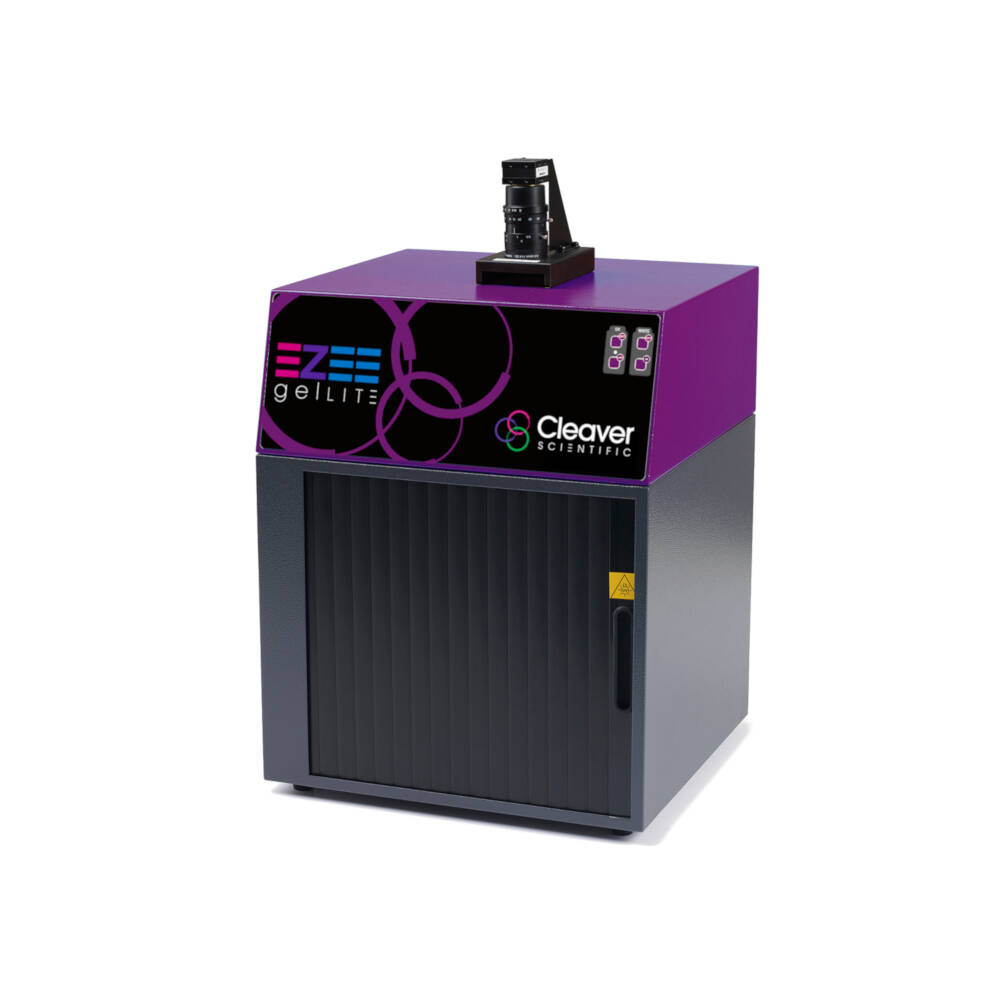

gelLITE Gel Documentation System

SKU: - UNSPSC: - Manufacturer Part No: - Pack Size: -

  • Engineered and manufactured in the UK
  • Full manual control of camera focus and zoom
  • Multiple filter options available for ethidium bromide and safe DNA stains
  • White light and blue light options
  • 5 million pixel resolution camera with 65,536 grey levels
  • genePIX acquisition and geneQUANT analysis software included license free.
Special Requirements?

Build out your order then request a quote from your cart.

Clear
See Variant info VAT
Ex. Inc.

Product succesfully added to cart. View Cart

If you are looking for a quote, you can request this here.

The gelLITE completes our range of gel and chemiluminescence documentation systems with an economical and effective solution for agarose gel imaging. The manually controlled camera zoom and focus gives users complete control of their imaging, and intuitive genePIX acquisition software enable a fast and efficient workflow.

CONVENIENT

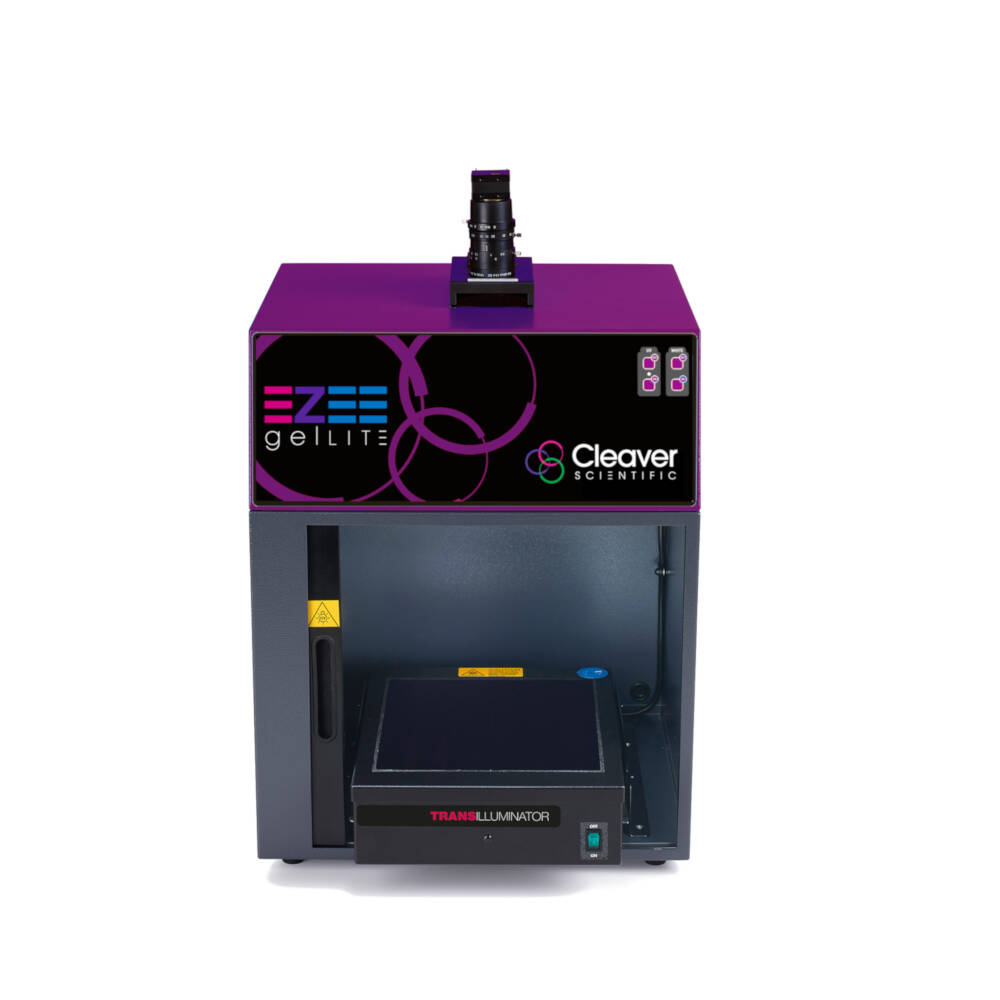

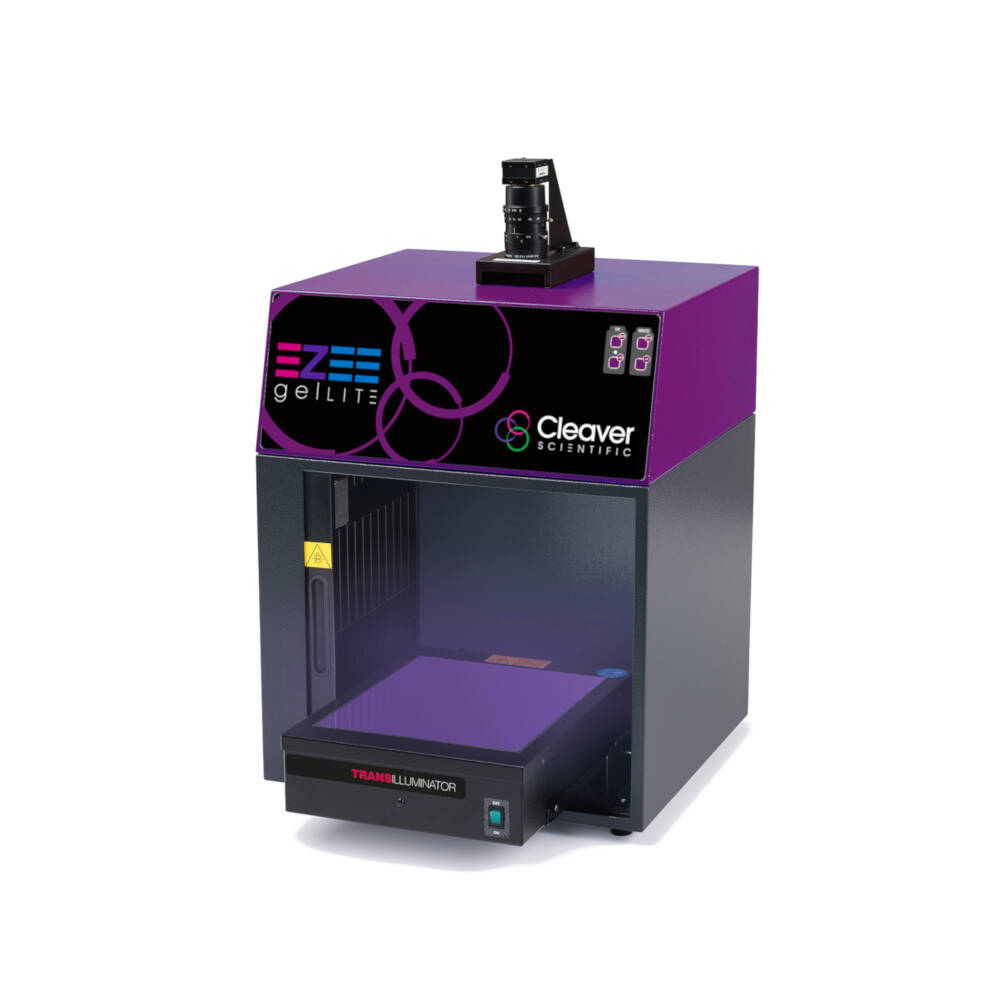

A 302nm UV transilluminator enables imaging of large format agarose gels or stained protein gels up to 20 x 20 cm. The UV transilluminator also slides out from the main body of the system allowing gel extraction of DNA fragments.

SENSITIVE

A 5 Megapixel camera gives excellent low light sensitivity for clear resolution of closely spaced DNA bands and ensures even low levels of fluorescence are detected.

INTUITIVE

genePIX acquisition software is included free of charge and uses application based work flows to simplify gel imaging. For analysis,

ACCURATE

geneQUANT analysis software features automated lane and band detection, pre-loaded DNA ladder standards for simple quantification and automated report creation for documentation of results perfect in a GLP environment.

APPLICATIONS

Fluorescent and visible stained agarose gels

Spot/colony plate counting

Coomassie stained protein gels

GFP Plant Imaging

Molecular weight analysis of DNA agarose gels and protein gels

Quantification of DNA in agarose gels

Autoradiograph imaging

Download a demonstration version of the system software here

SKUGELLITEGELLITEPROGELLITEPROSAFEGELLITESAFE
Unit Dimensions (cm)62 x 37.5 x 4062 x 37.5 x 4062 x 37.5 x 4062 x 37.5 x 40
ConstructionPowder Coated SteelPowder Coated SteelPowder Coated SteelPowder Coated Steel
Resolution5 Megapixel5 Megapixel5 Megapixel5 Megapixel
Analysis SoftwareIncludedIncludedIncludedIncluded
Transilluminator Wavelength302nm302nm302nm302nm
Epi White LightIncludedIncludedIncludedIncluded
Transilluminator Size20 x 20 cm20 x 20 cm20 x 20 cm20 x 20 cm
LensManual zoom 6.5 – 39, F1.4Manual zoom 6.5 – 39, F1.4Manual zoom 6.5 – 39, F1.4Manual zoom 6.5 – 39, F1.4
Sensor Bit-Depth12/16 bit12/16 bit12/16 bit12/16 bit
Emission FiltersQuick change filter trayQuick change filter trayQuick change filter trayQuick change filter tray
Image StorageSGD, BMP, TIFF and JPEGSGD, BMP, TIFF and JPEGSGD, BMP, TIFF and JPEGSGD, BMP, TIFF and JPEG
White Light TableOptionalIncludedIncludedOptional
Blue LightOptionalOptionalBlue light converter includedBlue light converter screen
Sensor Dynamic Range3.6-4.83.6-4.83.6-4.83.6-4.8
Control InterfaceUSBUSBUSBUSB
21CFR CompliantTRUETRUETRUETRUE
Advanced Analysis FeaturesYesYesYesYes
Operating System RequirementsWindowsWindowsWindowsWindows
Safety FeaturesUV Safety SwitchUV Safety SwitchUV Safety SwitchUV Safety Switch
Compliance MarksCECECECE
Product Flyers
Variant
Pack/Size
Ordering
Price
Qty
GELLITE-3.WEB
gelLITE Gel Documentation System
/

SKU: CLV-GELLITE

Manufacturer Part No: GELLITE

UNSPSC Code: 41105314

POA
GELLITE-3.WEB
gelLITE Gel Documentation System and white light converter screen
/

SKU: CLV-GELLITEPRO

Manufacturer Part No: GELLITEPRO

UNSPSC Code: 41105314

POA
GELLITE-3.WEB
gelLITE Gel Documentation System with white and blue light converter screens
/

SKU: CLV-GELLITEPROSAFE

Manufacturer Part No: GELLITEPROSAFE

UNSPSC Code: 41105314

POA
GELLITE-3.WEB
gelLITE Gel Documentation System and blue light converter screen
/

SKU: CLV-GELLITESAFE

Manufacturer Part No: GELLITESAFE

UNSPSC Code: 41105314

POA
