Floating Frame Fixture for 1536 FP3 Pin Tools
Basic Robot Pin Tool Fixture for 1536 FP3 Series Pins, 0.787mm diameter, ni-lube-coated, includes only fixtures
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.Basic Robot Pin Tool Fixture for 1536 FP3 Series Pins, 0.787mm diameter, ni-lube-coated, includes only fixtures

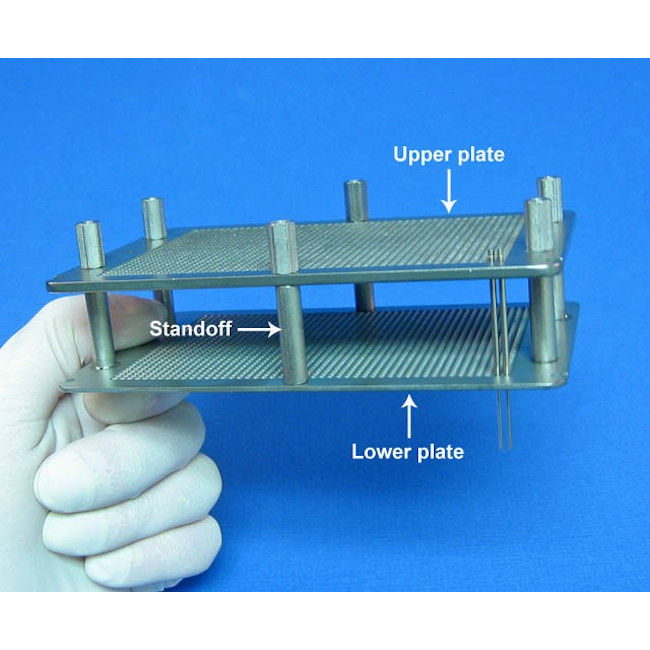

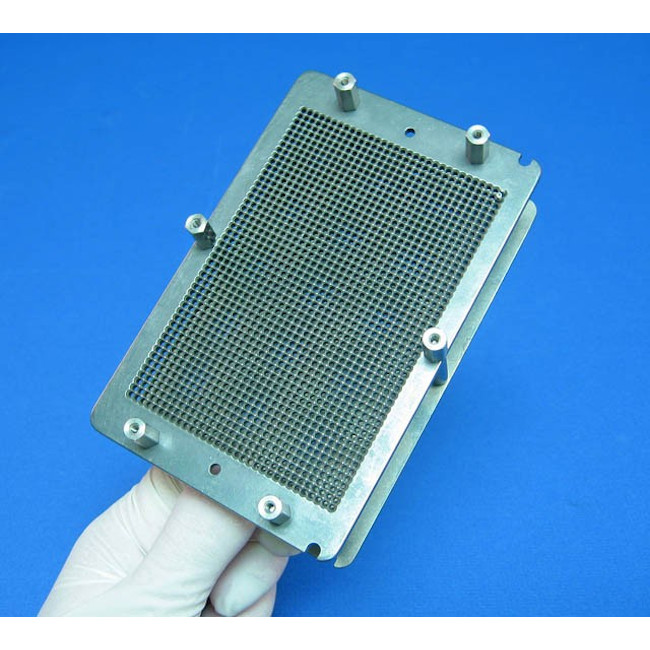

The fixtures for Tube Style Pins consist of a top float plate that will accommodate all 1.58 mm diameter tubes, a bottom float plate that will accommodate either a .229 mm, .457 mm or .787 mm diameter pin and 6 standoffs that keep the two plates separate. The length of the standoffs is determined by the length of the pin used. These fixtures are capable of being connected to over 34 different robotic workstations by a variety of robot mounting plates that we provide. Simply select the Pin Tool Fixture, the Pin, the Robot Mounting Plate and you are ready to order.
| Liquid Handler Compatibility | Apricot |
|---|---|
| Materials - Attributes | Aluminum |
| Coating/Encapsulation | Ni-Lube Coated |
| Pin Tool Components | Fixtures |
| Format | 1536 |
