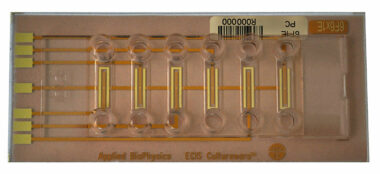

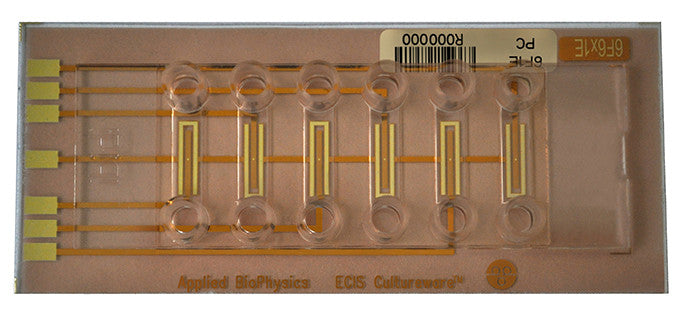

ECIS six channel flow chamber with 1 circular electrode (0.049 sqr.mm total area) per channel. Lexan substrate. 0.66 mm channel height.
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.
PC Version Array: Clear polycarbonate substrate, standard thickness 0.51mm or high numerical aperture (HNA) series of 0.13mm

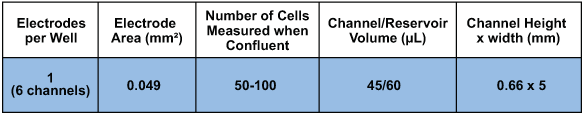

This flow array allows 6 independent flow assays to be run simultaneously. The channels are 0.66mm in height and 5mm wide with 1 active 250um diameter electrode (measuring from 50-100 cells) per channel.
Each channel has a 45μL volume with 60μL reservoirs.
Applications include:
• Barrier function
• Signal transduction assays
• Cell Invasion
• In situ Cell Electroporation and Monitoring
• Cell migration / Wound Healing
• Cell proliferation
• Cell Differentiation
• Cytotoxicity
