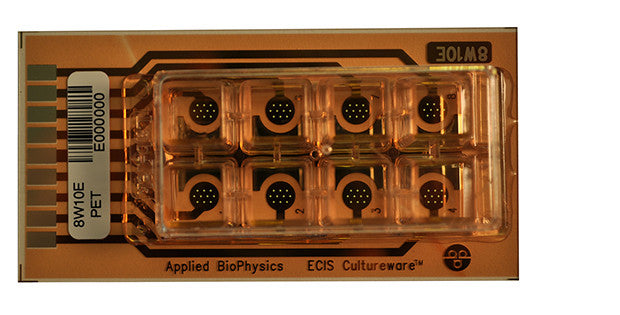

ECIS 8 well chamber with ten circular electrodes (0.49 sqr.mm ) PET substrate
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.
PET Version Array: Polyethylene terephthalate, standard thickness 0.25mm

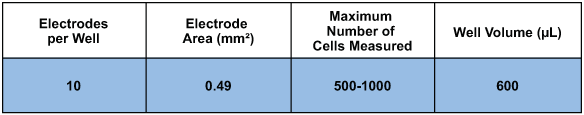

Each of the 8 wells contains ten circular 250 μm diameter active electrodes connected in parallel on a common gold pad. Each well has a substrate area of 0.8 cm2 and a maximum volume of 600 μL. On average, with a confluent cell layer, approximately 500 to 1000 cells will be measured by the electrodes.
Applications include:
• Cell Attachment and Spreading
• Cell proliferation
• Cell Differentiation
• Barrier function
• Signal transduction assays
• Cell Invasion
• Cytotoxicity
