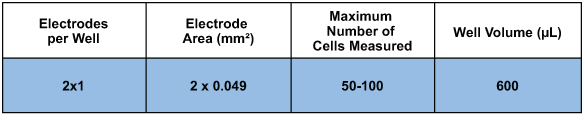

ECIS 8 well chamber with 2 independent (0.049 sqr.mm ) electrodes per well. (4 wells addressable at a time) PET substrate
Special Requirements?
Build out your order then request a quote from your cart.
Product succesfully added to cart. View Cart
If you are looking for a quote, you can request this here.
PET Version Array: Polyethylene terephthalate, standard thickness 0.25mm
**Specialty arrays may require 2-4 weeks lead time

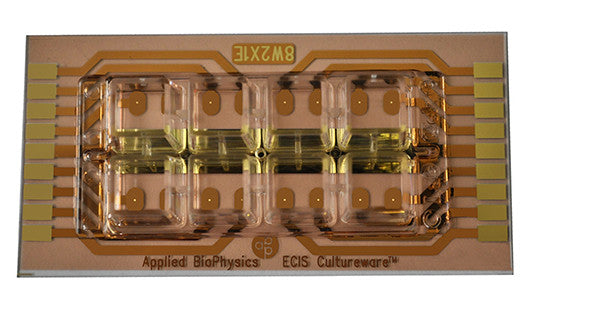

This array is also called the Medusa array. Each well in this array has two independent single 250 µm diameter active electrodes. The Medusa array is useful for duplicating readings in the same well or to wound/electroporate one electrode while leaving the other as a control within the same well.
When connected to the array holder only the upper four wells are measured. To use the other four wells, the array is turned around and the contact pads at the other end are connected.
Applications include:
• Barrier function
• Signal transduction assays
• Cell Invasion
• In situ Cell Electroporation and Monitoring
• Cell migration / Wound Healing
• Correlated microscopy and ECIS experiments
