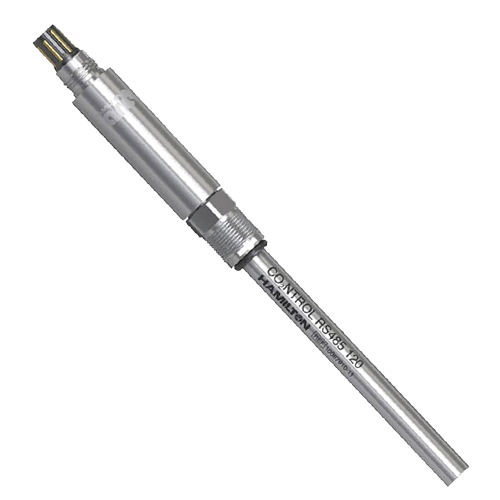

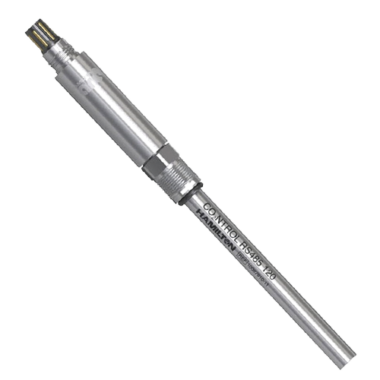

Dissolved Carbon Dioxide (DCO2) Sensors

  • Real-time DCO2 monitoring can help to deliver higher viable cell density

Sorry, this product is currently Out of stock

Dissolved carbon dioxide (DCO2 or dCO2) is an ond of important critical process parameter in biopharma production processes. Real-time DCO2 monitoring can help to deliver higher viable cell density, a prolonged growth phase, and higher product yield, and can enables consistent process performance across different R&D and production scales and optimizing manufacturing efficiency.
Sensor Family CO2NTROL Parameter DCO2 Measuring Range 5 - 1000 mbar or 0.5 - 100 % vol or 7.5 - 1500 mg/L in liquid phase at 101.3 kPa and 25°C Measurement Principle Non-dispersive Infra-Red (NDIR) absorption of wavelength selective for CO2; temperature compensation Autoclavable Yes, max. Temperature 140 °C Steam Sterilizable Yes, max. Temperature 140 °C Operating Temperature Range -10 to 140 °C; the sensor provides no CO2 reading above 60 °C Pressure Range bar -1 to 12 bar Diameter 12mm Process Connection PG13.5
