Analytik Jena AG

Biometra TS1 ThermoShaker

  • Interchangeable block modules for microtubes up to 2.0 ml
  • Three instruments in one: thermomixer, mixer, incubator
  • Temperature range: RT + 5 °C to 100 °C

Purchasing Platforms

This item is available to order through the following:

Clear
£2,129.57 VAT
Ex. Inc.

Sorry, this product is currently Out of stock

Compact Benchtop Thermomixer for all Applications Requiring Heating and /or Shaking in Microtubes up to 2.0 ml

The ThermoShaker TS1 is a variable speed and variable temperature microtube shaking incubator. Combining the incubation phase with mixing has multiple benefi ts: reduction of reaction process times, reduction of operator‘s workload and increasing efficiency of many procedures (e. g. transformation of bacterial cells).

Five interchangeable block modules are available to meet the needs of most laboratory procedures for 0.2 ml, 0.5 ml, 1.5 ml and 2.0 ml microtubes as well as 96-well microtiter plates (PCR-plates). Choosing the temperature calibration function allows the user to calibrate the unit over a range of approx. ± 6 % of the selected temperature to compensate differences in the thermal behavior of tubes or MTP‘s from different manufacturers.

The variable shaking speed from 250 to 1,400 rpm combined with the 2 mm shaking orbit and the soft start function allows gentle to vigorous mixing. The high quality quiet motor ensures regulated and reproducible rotation throughout the speed range. Shaking can be configured for continuous or timed operation with buzzer and automatic switch-off.

The ThermoShaker TS1 is designed for easy operation. Temperature, speed and time are indicated on the two-line display for both set and actual values. The apparatus is very compact, with a low profile and small footprint. Additionally the low voltage power supply enables safe cold room or incubator operation.

Temperature control
Temperature range Ambient + 5 °C up to 100 °C
Temperature settings + 25 °C to 100 °C
Temperature control accuracy ± 0,1 °C
Uniformity within the block ± 0.1 °C
(temperature range + 25 °C to + 40 °C)
± 1.0 °C
(temperature range + 40 °C to + 80 °C)
± 2.0 °C
(temperature range + 80 °C to + 100 °C)
Heating rate Approx. 4 °C / min
(7 min from ambient to 37 °C)
Temperature calibration ± 6 % of the selected temperature
Mixing function
Mixing frequency 1.400 rpm/min
Mixing orbit 2 mm
Adjustment of mixing frequency 10 rpm steps
Display
Display LCD, double spaced
Display set/actual values Temperature, mixing frequency, time
Display resolution 0,1 °C
Removable blocks
Reaction tubes 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml
Microtiter plates 96-well microtiter plates
Capacity 1 Block modul
Program functions
Timer Yes (Count-Down, 1 min to 96 h)
Elektrical properties
Main switch Yes
Stromversorgung 12 V DC Eingangsspannung
Electric power supply 100 – 240 VAC, 50/60 Hz, output DC 12 V, 3.5 A
Characteristics
Environmental operating range + 5 °C to 40 °C (80 % max. relative humidity to 31 °C, linear, decreasing to 50 % relative humidity at 40 °C)
Dimensions
(W x D x H)
205 mm x 230 mm x 130 mm
Weight Approx. Approx. 4 kg
Variant
Pack/Size
Ordering
Price
Qty

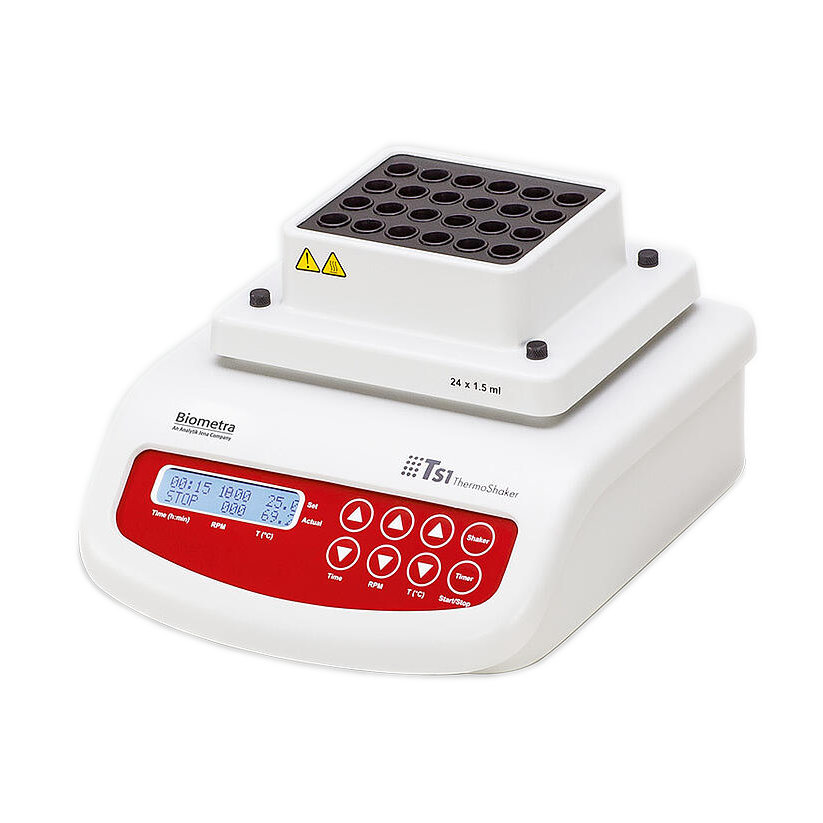

ThermoShaker TS1.jpg
Biometra TS1 ThermoShaker, 100 - 240 V, US plug
1 / Each

SKU: AJA-846-051-590

Manufacturer Part No: 846-051-590

UNSPSC: 41103801

POA
ThermoShaker TS1.jpg
Biometra TS1 ThermoShaker, 100 - 240 V, EU plug
1 / Each

SKU: AJA-846-051-500

Manufacturer Part No: 846-051-500

UNSPSC: 41103801

£2,129.57
Accessory
Pack/Size
Ordering
Price
Qty
846 051 513
1 / Each

SKU: AJA-846-051-513

Manufacturer Part No: 846-051-513

UNSPSC: 41102422

£546.96
846 051 512
1 / Each

SKU: AJA-846-051-512

Manufacturer Part No: 846-051-512

UNSPSC: 41102422

£546.96
846 051 516
1 / Each

SKU: AJA-846-051-516

Manufacturer Part No: 846-051-516

UNSPSC: 41102422

£546.96
846 051 515
1 / Each

SKU: AJA-846-051-515

Manufacturer Part No: 846-051-515

UNSPSC: 41102422

£546.96
846 051 514
1 / Each

SKU: AJA-846-051-514

Manufacturer Part No: 846-051-514

UNSPSC: 41102422

£546.96
