Beckman FX Robot ALP Pocket Mounting Plate

Pocket Mount for SBS-Footprint Registration Feature. With 4 securing screws and 4 legs to attach to Beckman FX ALP base plate (FXALPBASE sold separately). Total height from bottom of base to inside bottom of pocket mount = 154.2 mm (Same as standard Beckman ALP.)

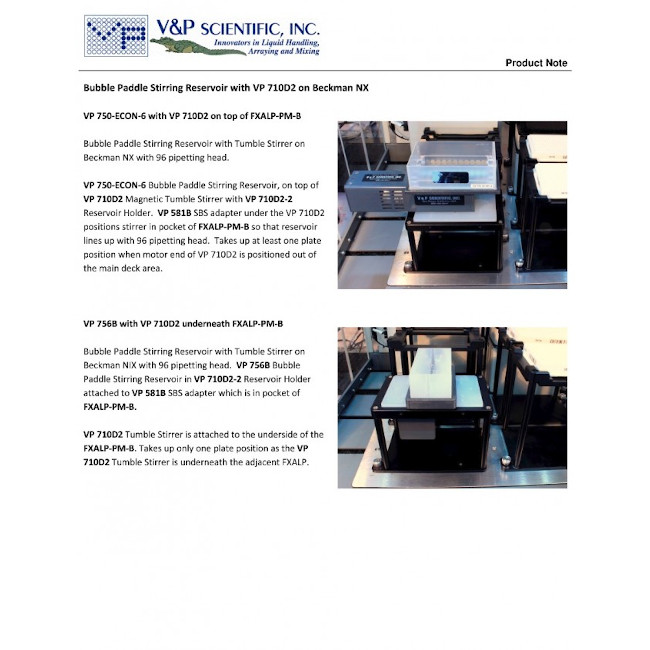

The FXALP-PM mounting system solves the problem of attaching our Tumble Stirrers and Bubble Paddle Stirrers to a Beckman FX deck. The photo on the right illustrates how we made some simple modifications to a VP 710C1 and mounted it on its side under one of our FXALP-PM plate holders for the FX and placed the VP 750-PTFE on top. An easy instillation that does not take away other plate positions. Depending upon your application a variety of other Bubble Paddle Reservoirs, microplates with Stir Elements or syringes with Stir Elements could be placed on the FXALP. Follow this link for more information.

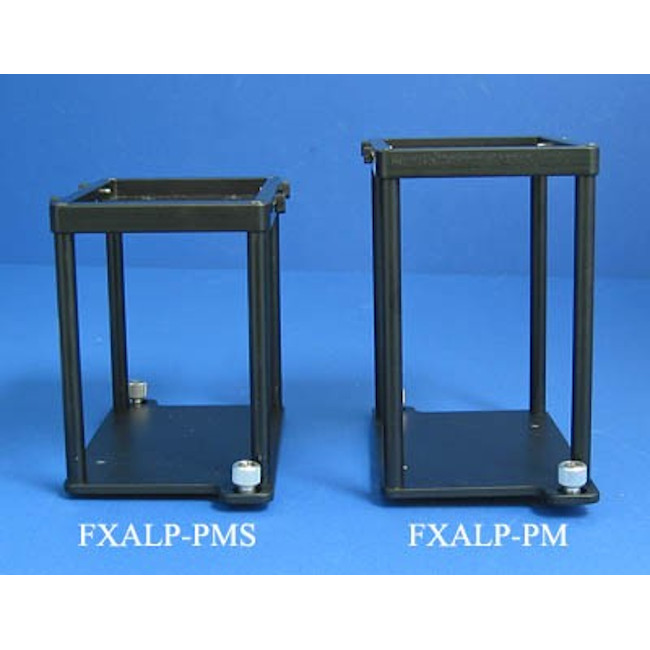

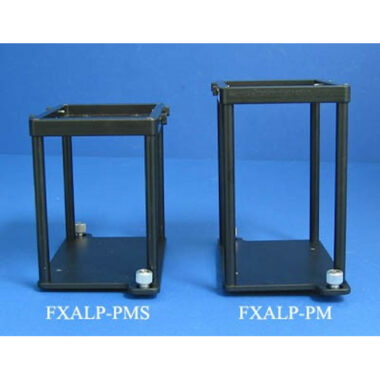

The FXALP-PM has the same “Z” height as a standard Beckman ALP system and consists of the legs and the Pocket mounting system. You can use the V&P FXALP-PMS with an existing Beckman ALP Base if you have an extra one or you can purchase an ALPFXBASE from us.
