8 Channel Aspiration or Dispensing Manifold on 9 mm centers and 14 mm long for Microplates, Polycarbonate Barrel

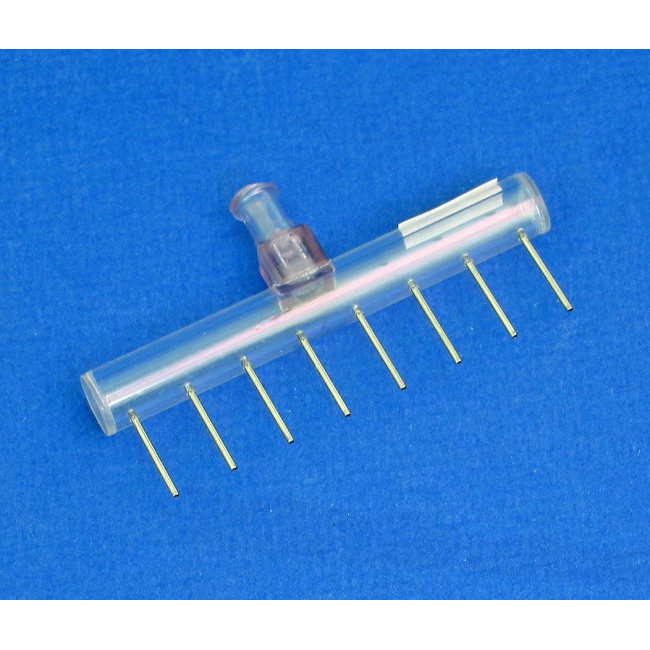

8-Channel Manifold – 96 well format, 19 gauge needles 14mm long

–

V&P Scientific is Aspiration and Dispensing Manifold Central

–

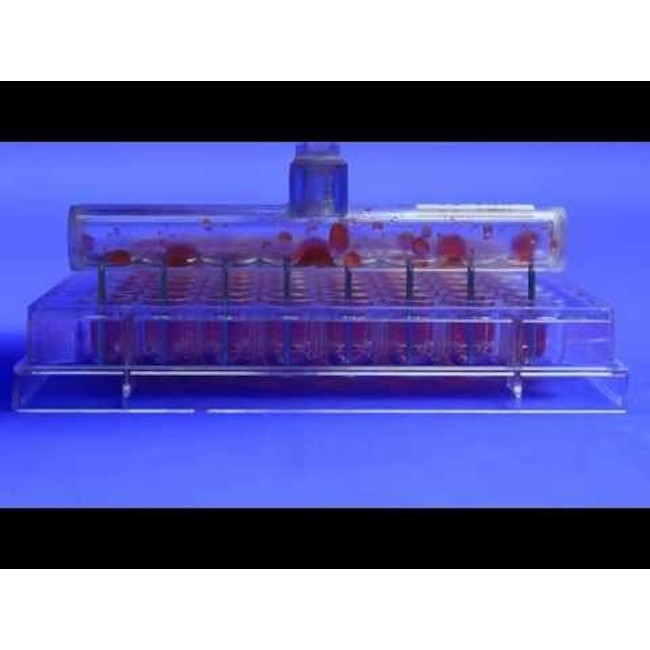

Aspirating liquid from microplates is an important aspect of processing many different assay protocols. V&P Scientific has worked with many different scientists and many different companies to make over 70 aspiration and dispensing manifolds for nearly every conceivable application. The following list highlights the diversity of V&P’s collection.

Different Needle Center to Center Spacing for Microplates & Tube Racks

2.25 mm, 4.5 mm, 9 mm, 13.4 mm, 15 mm, 18 mm, 20 mm, 26 mm, 39 mm

Different Number of Needles

3, 4, 5, 6, 8, 10, 12, 16, 24, 48, 72, 96, 384

Different Lengths of Needles

7 mm, 11 mm, 12.6 mm, 13 mm, 14 mm, 15 mm, 19 mm, 20 mm, 26 mm, 30 mm, 32 mm, 35 mm, 42 mm, 45 mm,

49 mm, 63.5 mm, 65 mm. Plus, our 6, 8 and 12 channel adjustible aluminum slides (VP 182S-1, VP 180S and VP 187S)

allow you to determine custom exposed needle lengths.

Angled Needles for Maximum Volume Aspiration

Different Needle Bore Sizes,

19 gauge, 20 gauge, 21 gauge, 23 gauge

Chemically Resistant Models

Organic solvents

Salt solutions and acids

Many of our aspiration manifolds can also be used as dispensing manifolds when used with bottle top or syringe dispensers.

If you have a unique application, let us know and we will make a custom aspiration manifold for you.

_

_

_

_

V&P produces a wide variety of wands and manifolds to aspirate or dispense sterile media, assay buffers and other liquids into standard or deep well microplates. We also make manifolds to evaporate liquids. The wands and manifolds are constructed of rugged clear polycarbonate* or polypropylene (black or white) and stainless steel tubes. The single bore wands are autoclaveable and come with either tapered or female luer ends.

_

The polycarbonate* manifolds are not autoclaveable and have female luer connectors. We also offer polypropylene manifolds (black) which are autoclaveable and resistant to organic solvents like DMSO. The manifolds have been developed for 24, 48, 96 and 384 well microplates as well for Gen-Probe assay plates and vials. It is very easy to attach these manifolds to an aspiration line by simply cutting off the finger tangs of a 1 to 3 ml plastic syringe then slipping your vacuum line over the syringe barrel and connecting the female Luer on the manifold to the syringe nozzle. We also make custom manifolds for aspirating deep well plates and micro-centrifuge tubes.

_

It is very easy to attach these manifolds to an aspiration line by simply cutting off the finger tangs of a 1 to 3 ml plastic syringe then slipping your vacuum line over the syringe barrel and connecting the female Luer on the manifold to the syringe nozzle. Another solution is to use Male Luer Lok fittings to connect to the hose system.

_

We are now providing male Luer Lok fittings with 3 different sized hose barb connectors (5/32″ – 4 mm, 3/16″ – 4.75 mm and 1/4″ – 6.25 mm) at no extra charge with each Luer Lok equipped manifold and wand we sell. We do everything we can to make it easy for our customers.

_

–

V&P Scientific, Inc. offers repeating syringe dispensers and bottle top dispensers that mate

with our dispensing manifolds. The following table illustrates the range of dilivery volumes

capable with each manifold and dispenser combination.

–
