384 Pin Multi-Blot Replicator, on 4.5 mm centers, 1.58 mm Pin Diameter, 22 mm long

Multi-Blot Replicator – 384 pins, 22 mm long, delivers ~0.2ul

V&P Scientific believes that our unique MULTI-BLOT™ Replicator system will revolutionize the way you do research. If your research involves screening, replicating or assaying numerous specimens or substances; our replication system will reduce your labor, increase your throughput and save you money. Although our Replicators are known by many names (Frogger, Dotter, Gridder, Hedgehog, Stamper, Spotter and Pin Tool), you will find them very useful in the transfer of liquids from one microplate to another or in gridding out macroarrays.

A larger volume (1 ul to 2 ul) of liquid is also transported on the sides of the pins however, this liquid is only transferred if the pins are submerged in another liquid. The volume of liquid transported on the sides of the pin is also dependent upon the depth to which the pin is wetted. This method greatly simplifies making one or a hundred copies and it is very rapid. The Replicator pins are made from durable stainless steel and are quickly sterilized by alcohol/flame or bleach procedure for rapid turn around between master plates.

Manual Pin Replicators are available in 2 basic styles:

1. Replicators with Pins that are fixed into position by pressing them into an aluminum Replicator plate.
2. Replicators with Pins that “float” between two aluminum Replicator registration frames with holes in them.

.

The fixed pin Manual Replicators vary in diameter from 0.457 mm to 6.35 mm and in length from 22 mm to 57 mm.

The floating pin Manual Replicators vary in diameter from 0.229 mm to 4.77 mm and in length from 12 mm to 41.5 mm.

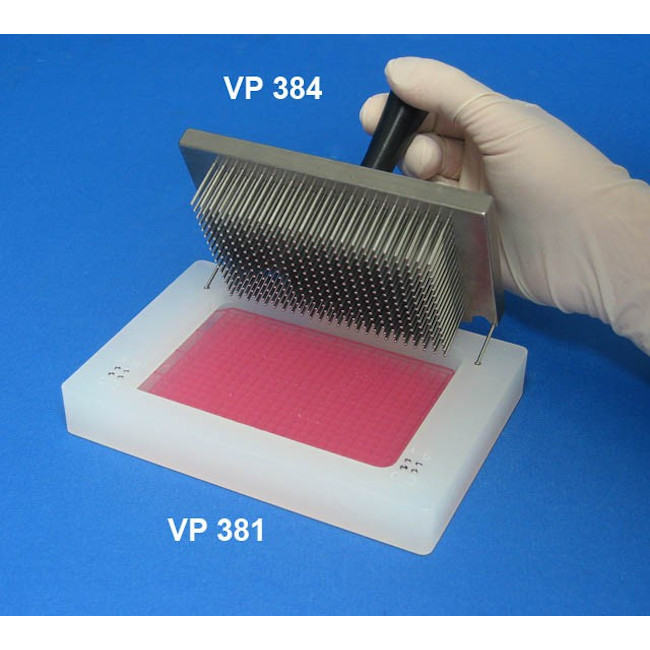

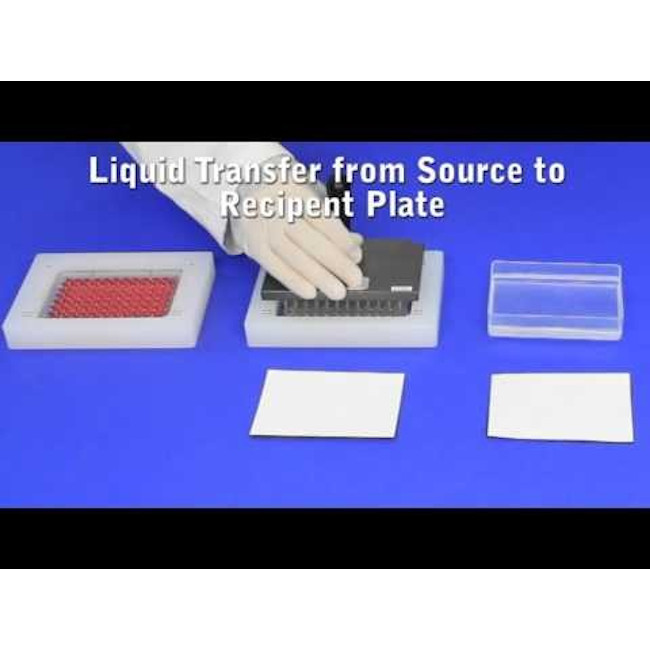

All of our Manual Replicators have 2 guide pins outside the array that are used to register the Manual Replicators to the microplates by placing the guide pins into alignment holes drilled into a Library or a Colony Copier registration device, see the photo below.

The type of floating pins used in Manual Pin Replicators fall into two categories,

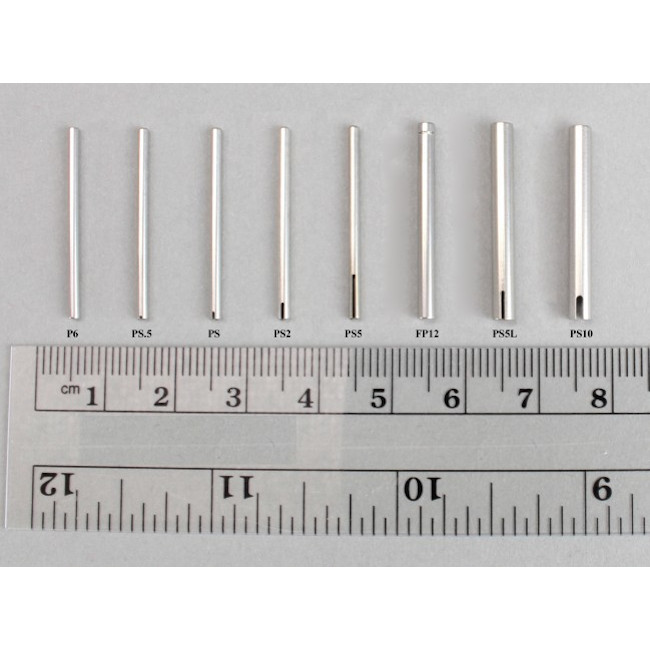

1. Tube Pins are stainless steel pins that are fixed inside tubes (cannulas) to provide greater strength to fragile small diameter pins. These tubes rest upon the lower of two thin float plates separated by a standoff.
2. E-Clip style of stainless steel pin have larger diameters which are grooved to accept an E-Clip which rests on a single thick float plate.

The Floating Tube pins vary in diameter from 0.229 mm to 0.914 mm, they also vary in the total length of the pin (from 33 to 62.2 mm) and the length of the exposed pin (from 12 to 17 to 30 to 41.5 mm) long. The exposed length terminology is used to define how far the pin is able to extend below the bottom float plate.

The volume of liquid transferred on a pin will vary with the diameter of the pin, the depth to which it is submerged into a liquid, and the speed the pin is withdrawn from the liquid. Also the surface tension of both the pin and the liquid will affect the volume transferred.

Both the Tube and E-Clip pins can be modified by cutting a very small precise slot in the tip of the pin which fills and drains by capillary action. The advantage of the slot pin is that if there are different volumes in the source wells (if the plate has been cherry picked many times) the slot pin will be less affected by the different volumes in the source plate. A slot pin, because of filling by capillary action from the bottom of the pin is able to make transfers from very small liquid volumes in source plates. Slot pins also yield a greater precision. The volume in the slot of a tube pin varies from 6 nl to 2,000 nl.

The E-clip pins range in diameter from 1.58 mm to 4.75 mm and from 22 mm exposed length to 49 mm exposed length. The E-clip pins can also be slotted and the slot volume ranges from 0.5 ul to 5 ul.

Both the Tube style pins and the E-clip pins can be coated with a hydrophobic layer to reduce non-specific binding to the pin.

We have sold over 50,000 Multi-Blot Manual Pin Replicators over the last 34 years and these versatile instruments have been used in many different applications from replicating genomic libraries, screening drugs for activity to making arrays on membranes and agar surfaces. The following links will take you pages on our old web site that list in great detail all the applications we are aware of or our customers have reported to us. In addition we have links to journal articles that describe many of these applications at this page.
