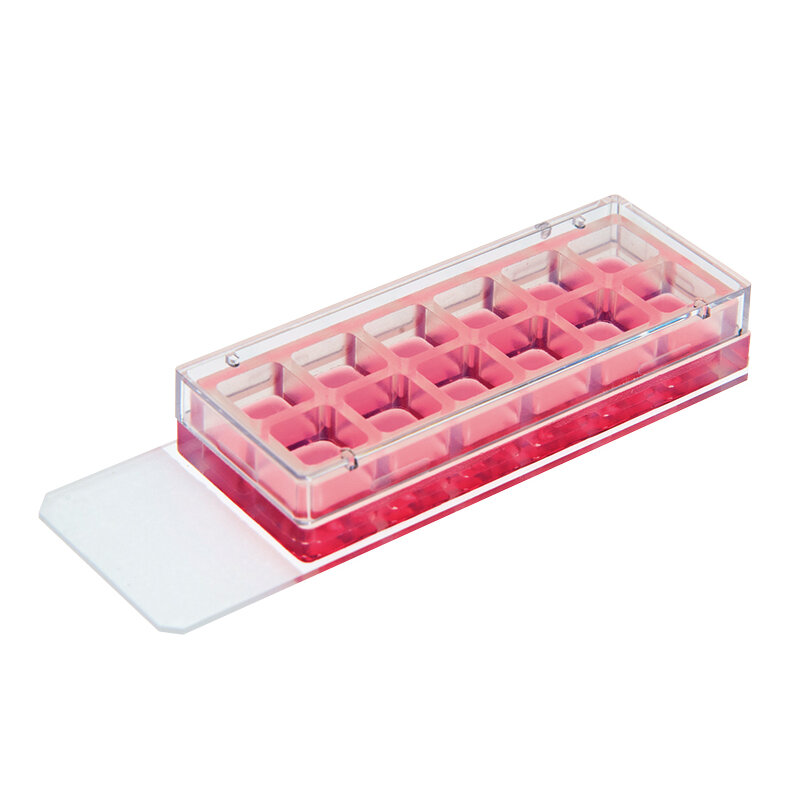

Chamber slide with a removable 12 well silicone chamber for cell culture and immunofluorescence staining
- The ideal chambered slide for cost-effective immunofluorescence assays and long-term sample storage
- Suitable for use with upright and inverted microscopes
- Small staining volume for reduction of required medium, cells, and supplements
Applications
- Immunofluorescence assays using standard coverslip techniques
- Long-term sample storage
- 12 fold sample preparation of adherent cells and tissue samples
Technical Features
- Self-adhesive silicone gasket mounted on a standard glass slide
- Biocompatible silicone material
- Non-fluorescent glass slide with frosted ends for easy handling and labeling
- Suitable for use with upright and inverted microscopes, after staining and mounting with a coverslip
- Compatible with all common mounting media
- May require coating to promote cell attachment

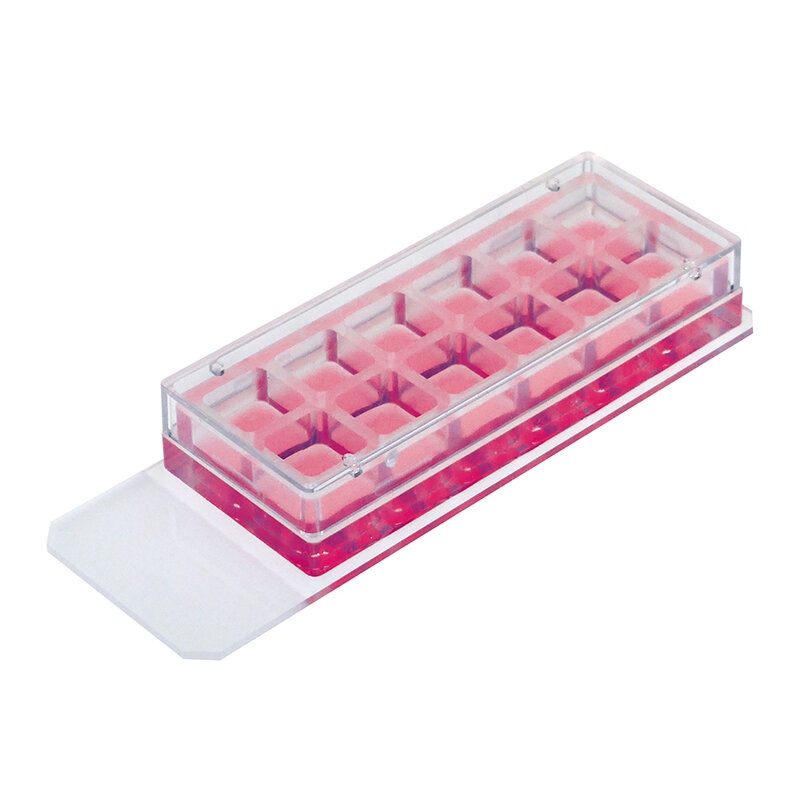

- Optional: The gasket may be transferred to any flat clean surface for cell cultivation
Specifications Table
Number of wells | 12 |
Dimensions of wells (w x l x h) in mm | 7.5 x 7.5 x 8 |
Volume per well | 250 µl |
Growth area per well | 0.56 cm² |
Coating area per well | 1.90 cm² |
Material | Biocompatible silicone |
Suitable coverslip size | 24 mm x 60 mm |
Bottom | Glass slide (26 x 76 x 1 mm) |
