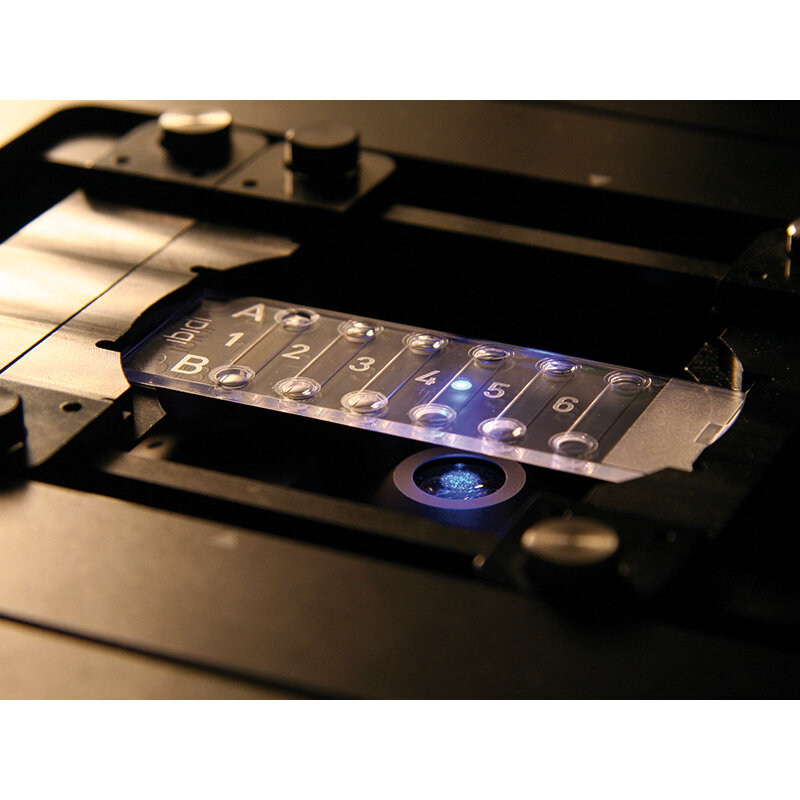

If you are looking for a quote, you can request this here.A µ-Slide with 6 parallel channels for short term assays
- A flat all-in-one chamber for immunofluorescence assays
Applications
- Immunofluorescence assays using expensive or rare reagents
- Cell-based short-time assays
- Parallel screening of antibodies
Technical Features
- 30 µl test volume, which saves on reagent consumption
- Compatible with multi-channel pipettes
- No lid available; to maintain sterility for long-term assays, put the slide into a 10 cm Petri dish
- Lettered and numbered channels
- Also suitable with upright microscopes
Specifications Table
| Outer dimensions (w x l) | 75.5 x 25.5 mm² |
| Adapters | None |
| Number of channels | 6 |
| Total height | 1.5 mm |
| Channel volume | 30 µl |
| Channel height | 0.4 mm |
| Channel length | 17 mm |
| Channel width | 3.8 mm |
| Growth area | 0.6 cm² per channel |
| Coating area using 30 µl | 1.2 cm² per channel |
| Bottom: ibidi Polymer Coverslip | |
| Outer dimensions (w x l) | 75.5 x 25.5 mm² |
| Adapters | None |
| Number of channels | 6 |
| Total height | 1.5 mm |
| Channel volume | 30 µl |
| Channel height | 0.4 mm |
| Channel length | 17 mm |
| Channel width | 3.8 mm |
| Growth area | 0.6 cm² per channel |
| Coating area using 30 µl | 1.2 cm² per channel |
| Bottom: ibidi Polymer Coverslip | |
Instructions
Product Flyers
Variant
Pack/Size
Price
Qty
µ-Slide VI - Flat Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
15 / Pack
Price: £309.11 ex. VAT
µ-Slide VI - Flat ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
15 / Pack
Price: £309.11 ex. VAT
