Ibidi

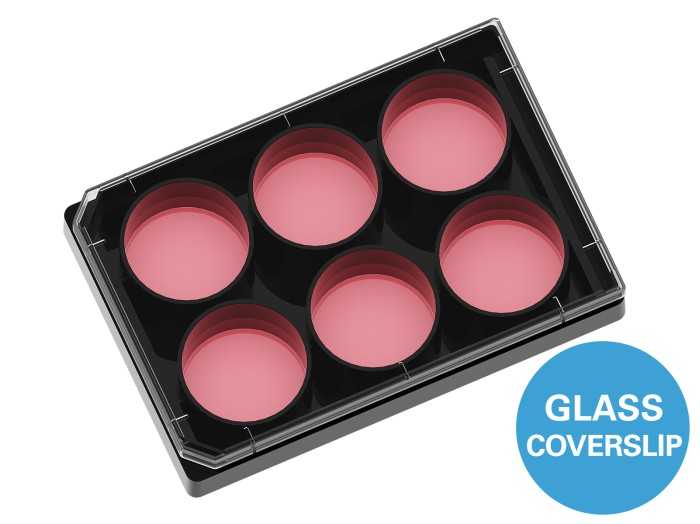

µ-Plate 6 Well Glass Bottom

A black 6 well plate with round wells and a glass coverslip for super-resolution and TIRF imaging

  • A multiwell plate designed for super-resolution microscopy due to low thickness variability of the #1.5H Glass Coverslip Bottom
  • Excellent inner well flatness and whole plate flatness
  • Black walls provide low well-to-well crosstalk advantages for fluorescence microscopy
Open Tooltip - GreenAware
?
GreenAware
Clear
£677.72£3,447.49 ex. VAT VAT
Ex. Inc.

Sorry, this product is currently Out of stock

Applications

  • Ideal for experiments with a moderate number of samples or cells
  • Cultivate and maintain different cell lines under various conditions
  • Large-scale transfection experiments
  • Total internal reflection fluorescence (TIRF)
  • Super-resolution microscopy (STED, SIM, (F)PALM, (d)STORM)
  • Immunofluorescence staining

Technical Features

  • ANSI/SLAS (SBS) standard format
  • Ready-to-use for lab automatization and high-throughput with robotics, fluorescence scanners, and plate readers
  • Six round wells with standard numbering (letters A–B and numbers 1–3)
  • Excellent inner well flatness and whole plate flatness
  • High-quality #1.5H Glass Coverslip Bottom, for super-resolution microscopy
  • No autofluorescence
  • Compatible with staining and fixation solvents
  • Compatible with immersion oil
  • Non-cytotoxic and biocompatible
  • Sterile with single packaging
  • Also available as µ-Plate 6 Well with a #1.5 Polymer Coverslip Bottom

The Principle of the µ-Plate 6 Well Glass Bottom

The Coverslip Bottom

The µ-Plate 6 Well Glass Bottom is designed with a high precision D263 M Schott glass, No 1.5H (170+/-5 µm) Glass Coverslip Bottom. This bottom provides exceptional optical properties for super-resolution or TIRF microscopy

Length / width 127.5 / 85.5 mm
Height with / without lid 22.4 / 20.0 mm
Well-to-well distance 37.5 mm
Well clearance 0.35 mm
Single well diameter 34.0 mm
Single well depth 19.0 mm
Volume per well 5 ml
Growth area per well 9.1 cm2
Coating area per well using 5 ml 14.9 cm2
Bottom ibidi Polymer Coverslip
Instructions
Variant
Pack/Size
Ordering
Price
Qty
µ-Plate 6 Well Glass Bottom, Bulk Box 90: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
90 / Pack

SKU: IB-80637-90

Manufacturer Part No: 80637-90

UNSPSC: 41122107

£3,447.49 ex. VAT
µ-Plate 6 Well Glass Bottom: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
15 / Pack

SKU: IB-80637

Manufacturer Part No: 80637

UNSPSC: 41122107

£677.72 ex. VAT
